MIL-DTL-55302-151 Connectors, Printed Circuit Subassembly And Accessories: Plug With Socket Contacts, 2.717 Inches Length, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-DTL-55302/151C

Inches

.004

0.10

.374

9.50

.008

0.20

1.110

28.19

.116

2.95

1.200

30.48

.126

3.20

2.221

56.41

.187

4.75

2.400

60.96

.19

4.8

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is � .005 (0.13 mm).

4. Floating mount panel thickness .085 (2.15 mm) maximum.

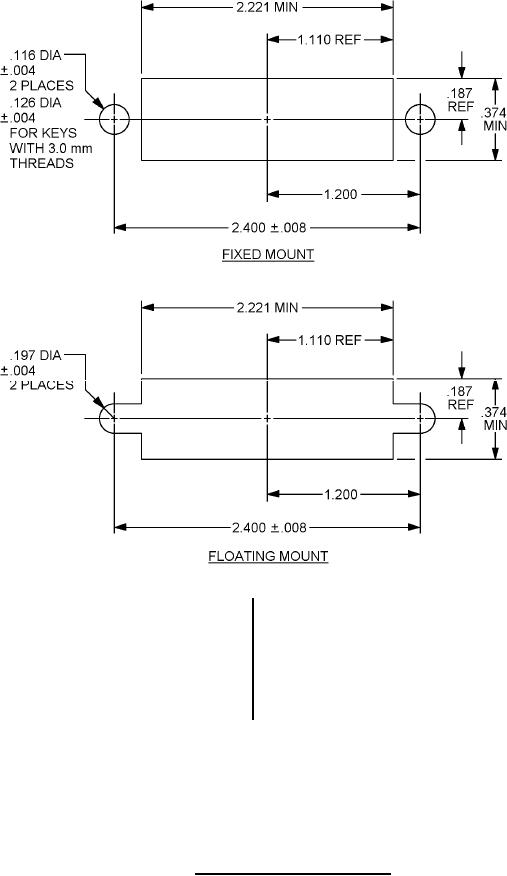

FIGURE 6. Recommended panel cutouts.
