MIL-DTL-55302-158 Connectors, Printed Circuit Subassembly And Accessories; Receptacle Socket Contacts, 64 Or 96 Contact Positions, For Printed Wiring Boards \(.100 Inch Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-55302/158C
Inches
mm
.020
0.51
.040
1.02
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

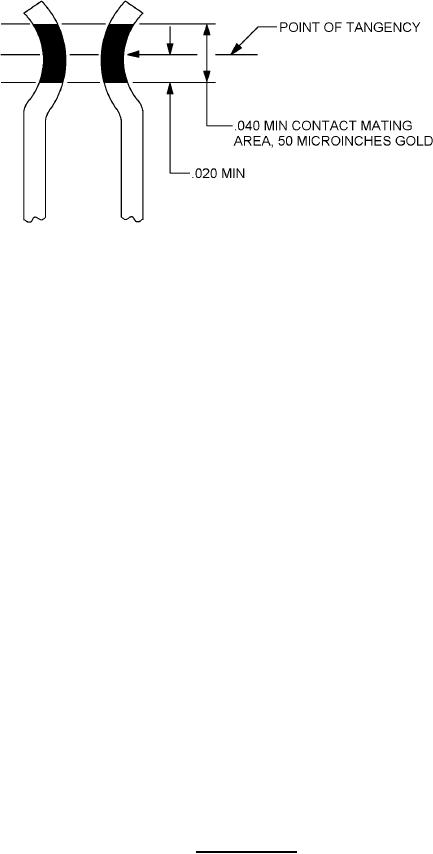

FIGURE 3. Contact plating.
