MIL-DTL-55302-159 Connectors, Printed Circuit Subassembly And Accessories, Receptacle, 17, 29, 33, 41, 53, And 65 Contact Positions, For Printed Wiring Boards, 2.54 Mm X 1.27 Mm Offset Grid, Metric

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-55302/159D
NOTES:
1. Dimensions are in millimeters.
2. Tolerances are noncumulative.

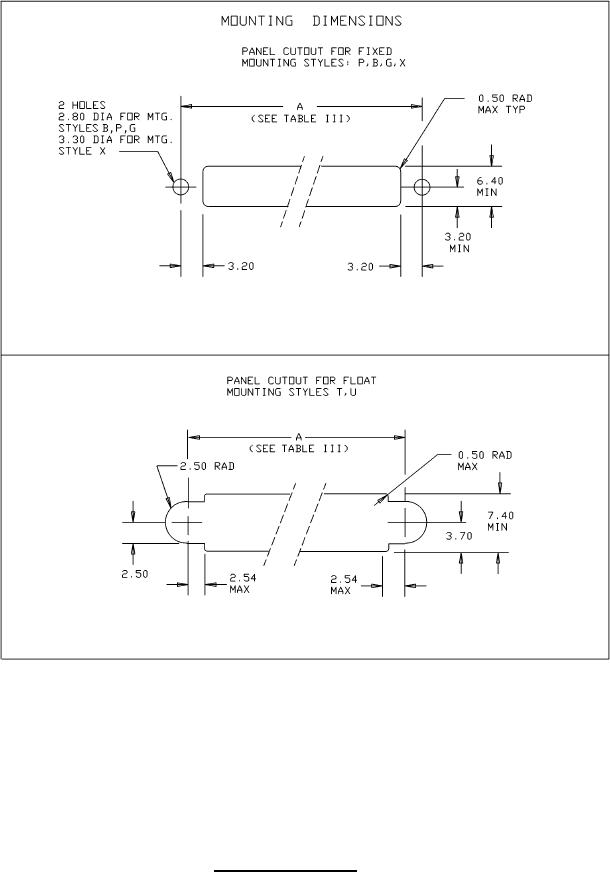

FIGURE 5. Mounting dimensions ­ Continued.
10
