MIL-DTL-55302-162 Connectors, Printed Circuit Subassembly And Accessories, Plug, 17, 29, 33, 41, 53, And 65 Contact Positions, For Printed Wiring Boards, 2.54 Mm X 1.27 Mm Offset Grid, Metric

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-DTL-55302/162D

NOTES:

1. Dimensions are in millimeters.

2. This is a metric design.

3. Unless otherwise specified, tolerance is � 0.10 millimeter.

4. These connectors mate with MIL-DTL-55302/159.

5. See table II for mating.

6. Contact identification may be located adjacent to cavity on face or side and may be rotated 180�.

7. Crimp contacts are shipped not inserted into insulator.

8. Use crimp tool M22520/2-01 for R and K terminal styles with Daniels manufacturing positioner

K547.

9. Use crimp tool M22520/2-01 for M and H terminal styles with Daniels manufacturing positioner

K547 and K640.

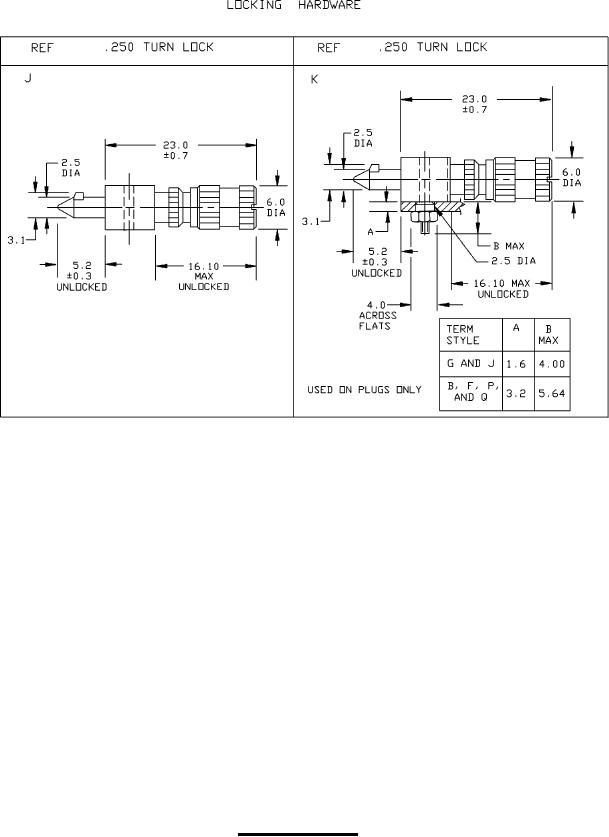

FIGURE 4. Locking hardware � Continued.
