MIL-DTL-55302/169B
Insert arrangement: See figure 2.
Contact tools for crimp only:
Extraction tool: See M81969/14-09.
Insertion tool: See M81969/14-09.
PIN: Consists of the letter M, the basic number of the specification sheet, and a dash number compiled
as follows:
B
18
2
M55302/169
Example:

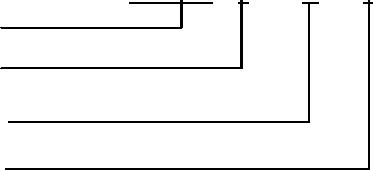

Specification sheet number
Number of rows (indicator)
(see table I for row indicator)
Number of contacts per row
(see table I for contact indicator)
Gold plated contact tails
(see table II for indicator)
User instructions: Each shipment of connectors shall include, as a minimum, instructions for
coupling/mounting bushing usage, polarization key usage and electrical probing information.
