MIL-DTL-55302/170B
Inches
mm
.050
1.27
.100
2.54
.150
3.81
.225
5.71
NOTE:
The arrangement length is determined by (N-1) x.100, where N is the number of contacts per row.
Example: For 60 contact row would be (60-1) x.100 = 5.90 inches.

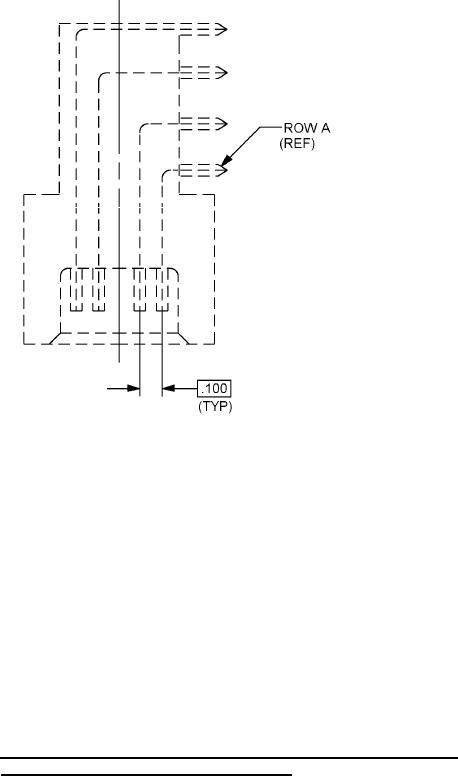

FIGURE 2. Insert arrangement for .100 (2.54 mm) contact spacing, female brush
right angle connectors (PCB mounting side) Continued.
