MIL-DTL-55302-174 Connectors, Printed Circuit Subassembly And Accessories: 2 Row, Receptacle Assemblies, Right Angle, 20 Through 150 Contact Positions, For Printed Wiring Boards \(.100 Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-DTL-55302/174C
Inches
mm
.020
.051
.040
1.02
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

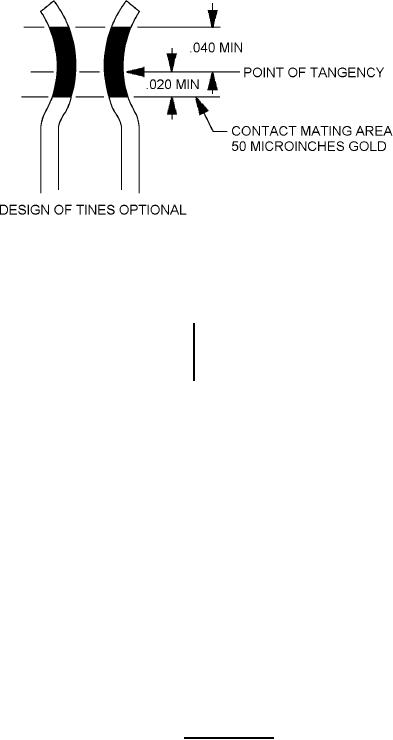

FIGURE 2. Contact plating.
