MIL-DTL-55302/19E
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.028
0.71
.065
1.65
.150
3.81
.303
7.70
.004
0.10
.039
0.99
.079
2.01
.152
3.86
.323
8.20
.005
0.13
.044
1.12
.084
2.13
.160
4.06
.334
8.48
.007
0.18
.050
1.27
.100
2.54
.173
4.39
.354
8.99
.009
0.23
.0515
1.308
.120
3.05
.187
4.75
2.850
72.39
.012
0.30
.0525
1.334
.122
3.10
.200
5.08
3.000
76.20
.026
0.66
.055
1.40
.140
3.56
.278
7.06
3.200
81.28
3.350
85.09
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. These connectors mate with connectors specified in MIL-DTL-55302/20 and are primarily for use with single-
sided, double-sided, or multilayered printed wiring board.
5. Positional tolerances of guide pins shall apply at datum plane X.
6. Pad(s) suitable for printed circuit boards support are optional. Dimensions and location(s) are optional.
7. The terminating side and the side opposite mating face of the plug may be open or solid construction.

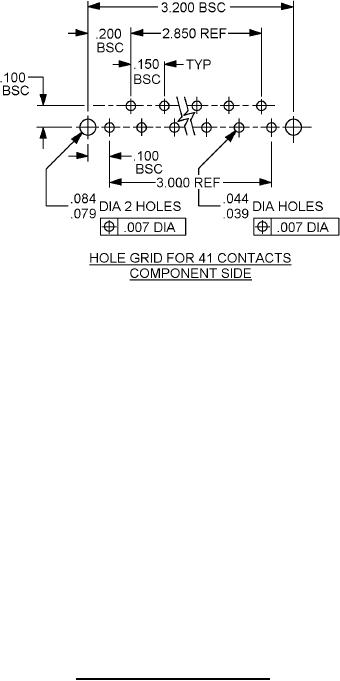

FIGURE 1. Connectors, plug (.100 spacing) - Continued.
REQUIREMENTS:
Design and construction:
Dimensions and configuration: See figure 1.
Material:
Guide pins and guide bushing: Brass C21000, as specified in ASTM B134, or FC brass as specified in
ASTM B16.
