MIL-DTL-55302/21F
A
B
C
D
E
F
Part or
±.010
Basic
Ref
Ref
±.015
±.008
Identifying
Number (PIN)
M55302/21-01
3.426
3.240
2.900
3.000
.087
.092
M55302/21-02
3.426
3.240
2.900
3.000
.145
.154
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.044
1.12
.099
2.51
.187
4.75
.004
0.10
.055
1.40
.100
2.54
.200
5.08
.005
0.13
.059
1.50
.120
3.05
.201
5.11
.007
0.18
.060
1.52
.122
3.10
.209
5.31
.008
0.20
.065
1.65
.140
3.56
.340
8.64
.009
0.23
.077
1.96
.145
3.68
.350
8.89
.010
0.25
.079
2.01
.150
3.81
.360
9.14
.012
0.30
.084
2.13
.154
3.91
2.900
73.66
.015
0.38
.085
2.16
.170
4.32
3.000
76.20
.026
0.66
.092
2.34
.173
4.39
3.240
82.30
.028
0.71
.098
2.49
.177
4.50
3.426
87.02
.039
0.99
.183
4.65
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. These connectors mate with connectors specified in MIL-DTL-55302/22 and are primarily for use with
single-sided, double-sided, or multilayered printed wiring board.
5. Positional tolerances of guide pins shall apply at datum plane X.
6. Pad(s) suitable for printed circuit boards support are optional. Dimensions and location(s) are optional.
7. The terminating side and the side opposite mating face of the plug may be open or solid construction.

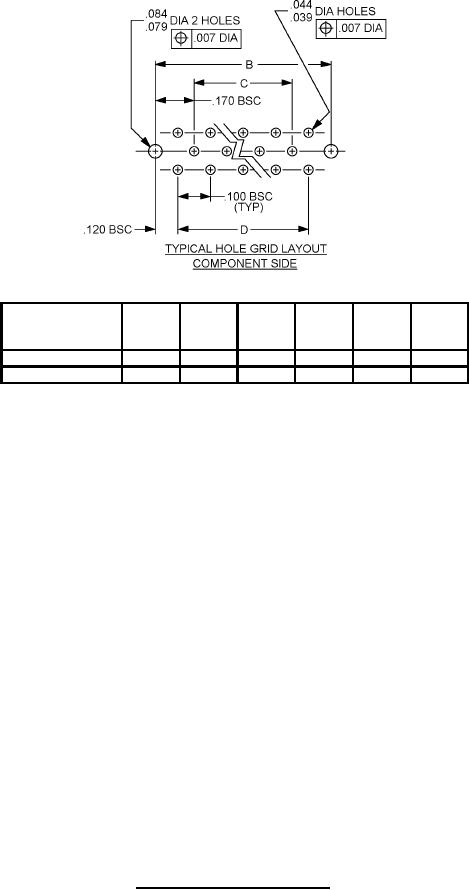

FIGURE 1. Connectors, plug (.100 spacing) - Continued.
