MIL-DTL-55302/52D
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.035
0.89
.100
2.54
.005
0.13
.050
1.27
.150
3.81
.007
0.18
.052
1.57
.168
4.27
.008
0.20
.084
2.13
.197
5.00
.010
0.25
.085
2.16
.294
7.47
.020
0.51
.086
2.18
.312
7.92
.032
0.81
.093
2.54
.477
12.12
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. With connectors fully engaged the mating contacts shall have a minimum overlap distance of .062 inches
(1.57 mm). As a minimum the contacts shall exhibit a wiping action through this distance.

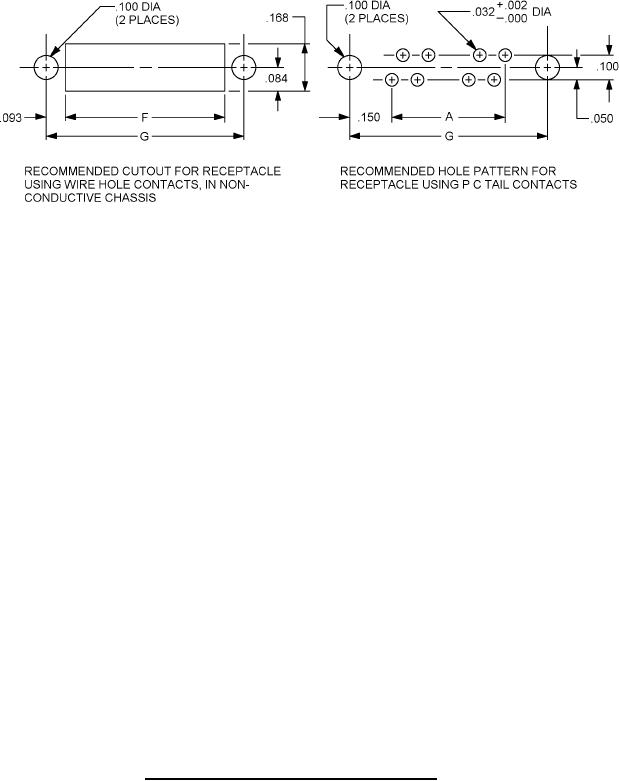

FIGURE 1. Connectors, receptacle, .100 (2.54 mm) spacing - Continued.
