MIL-DTL-55302/53C
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.035
0.89
.107
2.72
.470
11.94
2.350
59.69
.005
0.13
.047
1.19
.150
3.81
.850
21.59
2.490
63.25
.007
0.18
.050
1.27
.157
3.99
1.150
29.21
2.650
67.31
.008
0.20
.060
1.52
.173
4.39
1.290
32.77
2.950
74.93
.010
0.25
.062
1.57
.207
5.26
1.450
36.83
3.090
78.49
.015
0.38
.070
1.78
.270
6.86
1.750
44.45
3.550
90.17
.020
0.51
.074
1.88
.312
7.92
1.890
48.01
3.850
97.79
.031
0.79
.093
2.36
.372
9.45
2.050
52.07
3.990
101.35
.032
0.81
.100
2.54
.375
9.52
2.190
55.63
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Connectors are supplied with open eyelets (2), which are to be rolled over after assembly to printed wiring board.
5. With connectors fully engaged the mating contacts shall have a minimum overlap distance of .062 inches
(1.57 mm). As a minimum the contacts shall exhibit a wiping action through this distance.

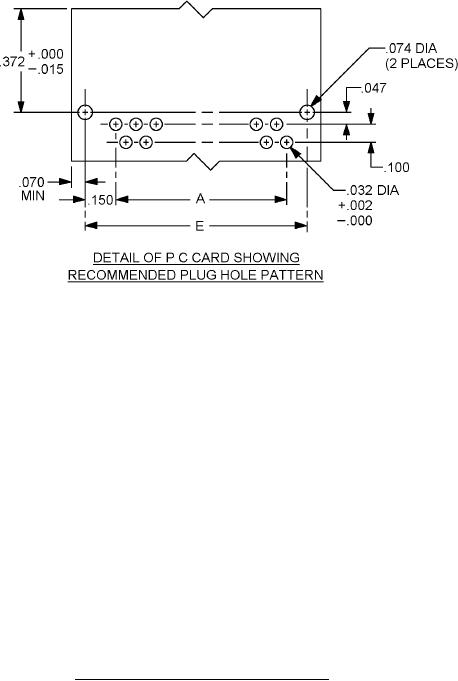

FIGURE 1. Connectors, plug, .100 (2.54 mm) spacing - Continued.
