MIL-DTL-55302/54C
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.086
2.18
.270
6.86
1.750
44.45
3.200
81.28
.005
0.13
.093
2.36
.275
6.98
1.864
47.35
3.450
84.84
.008
0.20
.100
2.54
.312
7.92
2.000
50.80
3.550
90.17
.010
0.25
.122
3.10
.453
11.51
2.050
52.07
3.664
93.07
.015
0.38
.156
3.96
.531
13.49
2.140
54.36
4.100
104.14
.020
0.51
.157
3.99
.850
21.59
2.164
54.97
4.240
107.70
.032
0.81
.168
4.27
.964
24.49
2.300
58.42
.035
0.89
.173
4.39
1.400
35.56
2.440
61.98
.050
1.27
.218
5.54
1.450
36.83
2.600
66.04
.062
1.57
.219
5.56
1.540
39.12
2.650
67.31
.084
2.13
.250
6.35
1.564
39.73
2.740
69.50
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. With connectors fully engaged the mating contacts shall have a minimum overlap distance of .062 inches
(1.57 mm). As a minimum the contacts shall exhibit a wiping action through this distance.

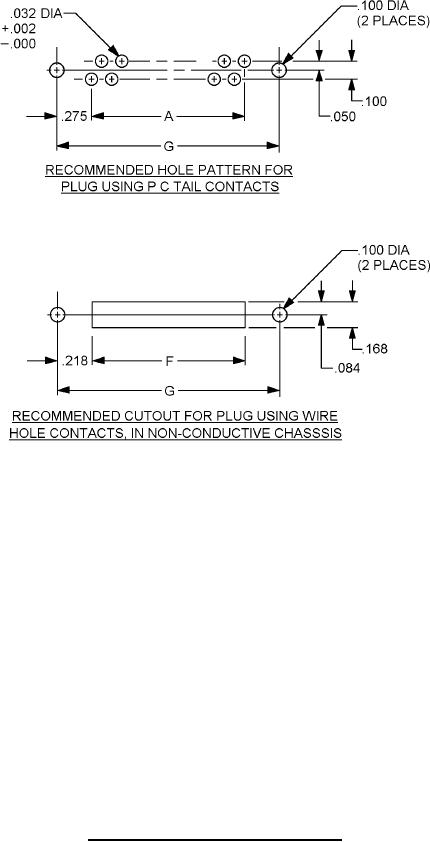

FIGURE 1. Connectors, plug, .100 (2.54 mm) spacing - Continued.
