MIL-DTL-55302/72D
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.075
1.91
.525
13.34
1.050
26.67
1.575
40.01
.106
2.69
.600
15.24
1.125
28.58
1.650
41.91
.150
3.81
.675
17.15
1.200
30.48
1.725
43.82
.225
5.72
.750
19.05
1.275
32.39
1.800
45.72
.300
7.62
.825
20.96
1.350
34.29
1.875
47.73
.375
9.53
.900
22.86
1.425
36.20
.450
11.43
.975
24.77
1.500
38.10
NOTES:
1. Contacts 1 through 14 and 27 through 40 (bottom arrangement) are identified on the front and rear of the
connector per the insert arrangement.
2. Contacts 1 through 26 and 51 through 76 (top arrangement) are identified on the front face and rear face of the
connector per the insert arrangement.

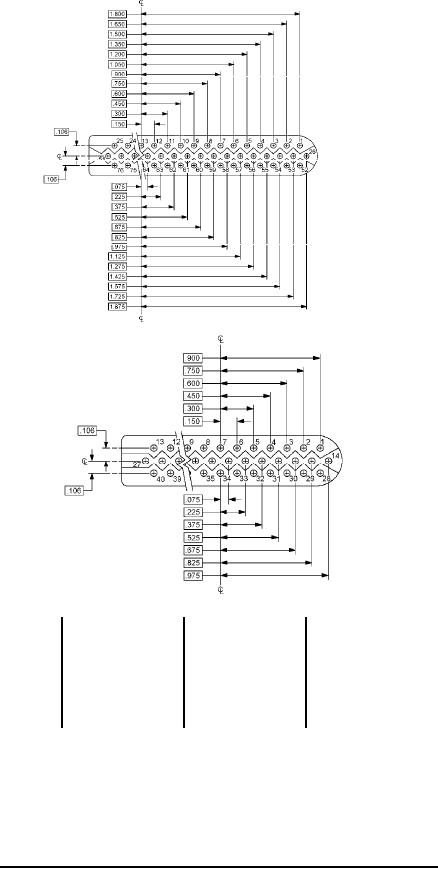

FIGURE 2. Insert arrangement for .150 (3.81 mm) connector, (female engaging face).
3
