MIL-DTL-55302/73D
TABLE I. Dash numbers and dimensions.
Dimensions 1/
Dash
Number of
number
contacts
+.008 (0.20)
C
B
A
D -.000
E
F
2.134
1.261
2.522
2.900
.286
2.522
(54.20)
40
01
(32.03)
(64.06)
(73.66)
(7.26)
(64.06)
2.144
4.288
4.650
.269
4.288
3.924
75
02
(54.46)
(108.92)
(118.11)
(5.83)
(108.92)
(99.67)
1/ Metric equivalents are given for information only. Millimeters are in parentheses.
TABLE II. Dash number, polarization and position. 1/
Dash number
Dash number
01
02
01
02
02-D1
01-D1
02-A1
01-A1
02-D2
01-D2
02-A2
01-A2
02-D3
01-D3
02-A3
01-A3
02-D4
01-D4
02-A4
01-A4
02-D5
01-D5
02-A5
01-A5
02-D6
01-D6
02-A6
01-A6
02-E1
01-E1
02-B1
01-B1
02-E2
01-E2
02-B2
01-B2
02-E3
01-E3
02-B3
01-B3
02-E4
01-E4
02-B4
01-B4
02-E5
01-E5
02-B5
01-B5
02-E6
01-E6
02-B6
01-B6
01-C1
02-C1
01-F1
02-F1
01-C2
02-C2
01-F2
02-F2
01-C3
02-C3
01-F3
02-F3
01-C4
02-C4
01-F4
02-F4
01-C5
02-C5
01-F5
02-F5
01-C6
02-C6
01-F6
02-F6
01-1S
02-1S
Nonpolarized
Nonpolarized
1/ Refer to figure 3 for polarization indexing.

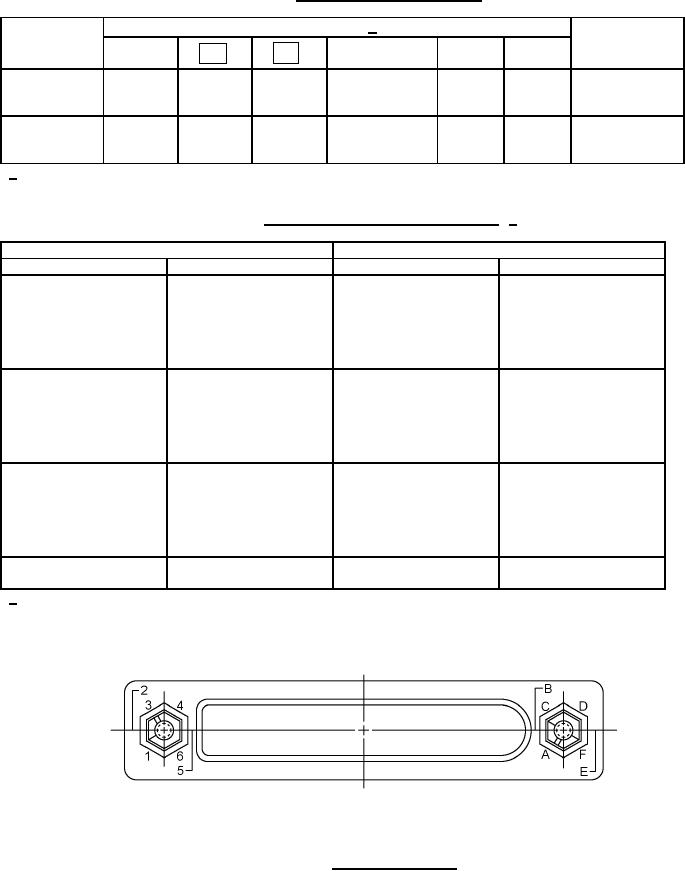

FIGURE 3. Polarization indexing.
