MIL-DTL-55302/75D
Inches
mm
Inches
mm
.050
1.27
.550
13.97
.100
2.54
.600
15.24
.150
3.81
.650
16.51
.200
5.08
.700
17.78
.250
6.35
.750
19.05
.300
7.62
.800
20.32
.350
8.89
.850
21.59
.400
10.16
.900
22.86
.450
11.43
.950
24.13
.500
12.70
NOTE: Contacts 1, 20, 21 and 39 are identified on the front and rear face of the connector per the insert
arrangement.

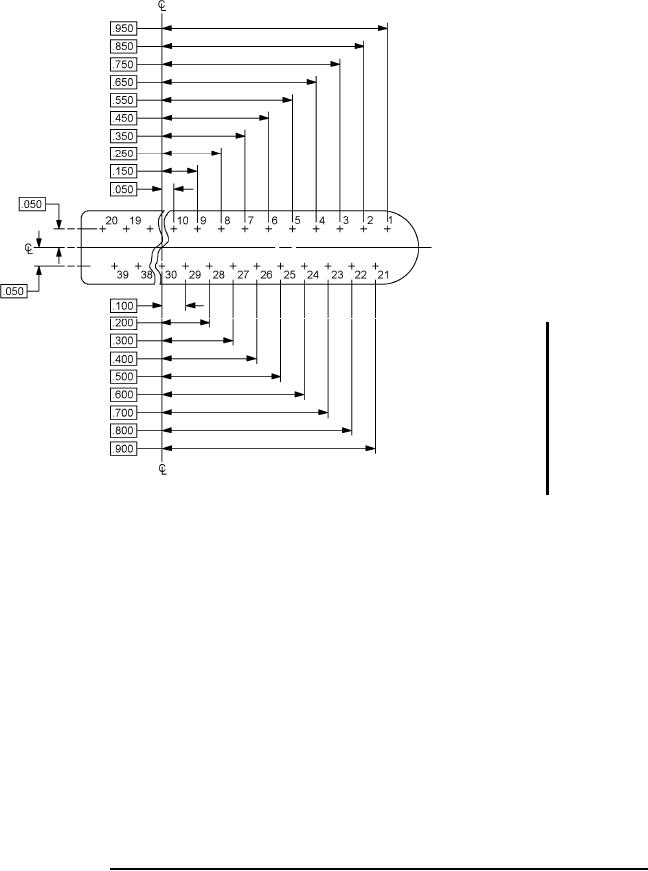

FIGURE 2. Insert arrangement for .100 (2.54 mm) contact spacing connectors (female engaging face).
3
