INCH-POUND
MIL-DTL-55302/90F
20 August 2008
SUPERSEDING
MIL-DTL-55302/90E
18 February 2005
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
RECEPTACLE, RIGHT ANGLE, HERMAPHRODITIC CONTACT (.100 INCH SPACING)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.

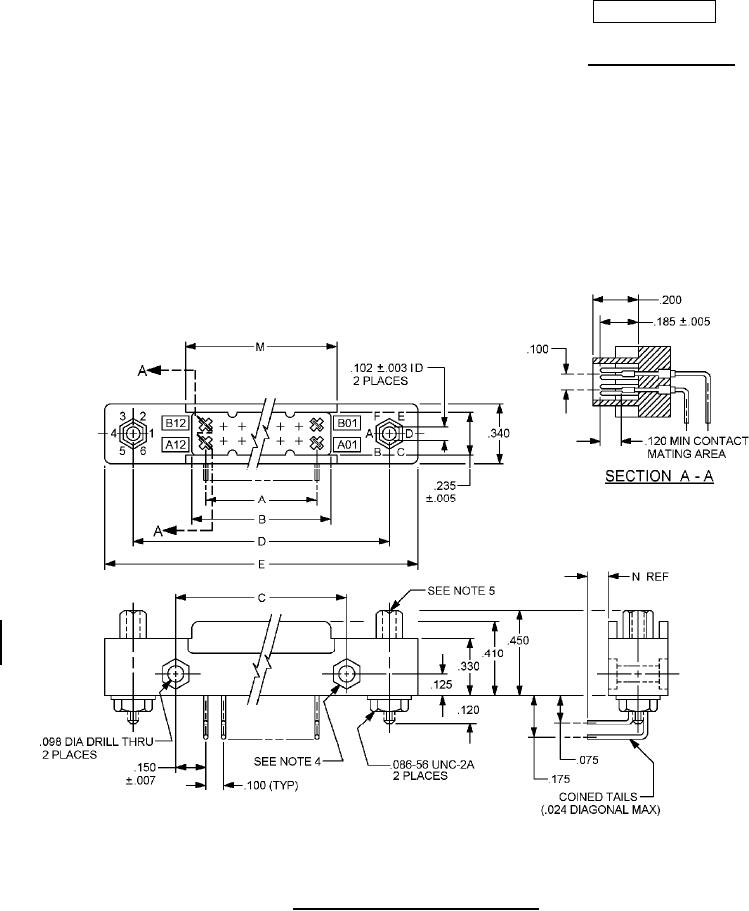

FIGURE 1. Connector receptacle (.100 inch spacing).
AMSC N/A
FSC 5935
