MIL-DTL-55302/97D
Inches
mm
.0000050
0.000127
.0000100
0.000254
.001
0.03
.005
0.13
.250
6.35
.266
6.79
.480
12.19

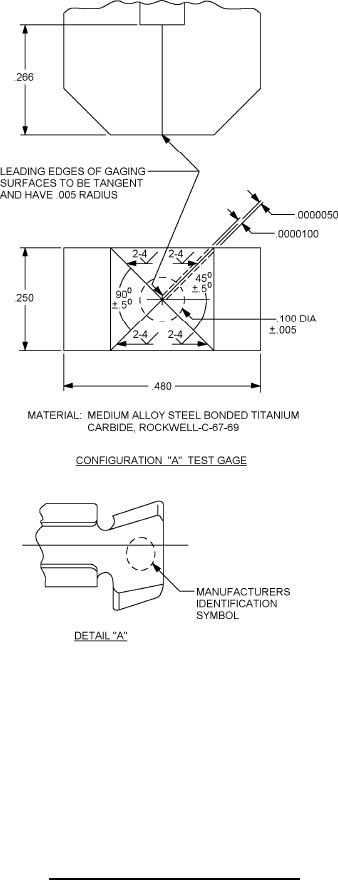

Manufacturer's identification symbol shall be imprinted approximately as shown.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tolerances shall be ± .005 (0.13 mm) unless otherwise specified. All dimensions are for parts after plating.
4. Trip area no to exceed width of contact across retaining lance area X.
5. Contact crimp for use with (AWG) wire range 22 to 30 stranded type E in accordance with MIL-DTL-16878.
6. Remove all burrs and sharp edges .001 inch (0.03 mm) maximum.
7. Crimp tool M22520/17-02.
8. Contact insertion and removal tool M81969/5-01 and M81969/4-02.
9. Contact relief hole configuration, optional.
FIGURE 1. Contact, hermaphroditic, crimp removable - Continued.
2
