INCH-POUND
MIL-DTL-641/1E
18 October 2013
SUPERSEDING
MIL-J-641/1D
03 July 1973
DETAIL SPECIFICATION SHEET
JACKS, TELEPHONE
TYPES JJ-015 AND JJ-019
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-641.
Inches
mm
Inches
mm Inches
mm
.002
0.05
0.2515
6.39 0.812
20.62
.005
0.13
0.281
7.14 0.859
21.82
.015
0.38
0.375
9.53 0.922
23.42
.040
1.02
0.448
11.38 0.969
24.61
.062
1.57
0.562
14.27 1.015
25.78
.094
2.39
0.625
15.88 1.250
31.75
.156
3.96
0.750
19.05 2.953
75.01
.250
6.35
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Jacks may be multiple mounted on a panel in accordance with the minimum center to center dimensions
specified in table I.
4. Arrangement of contact spring lifters is optional.

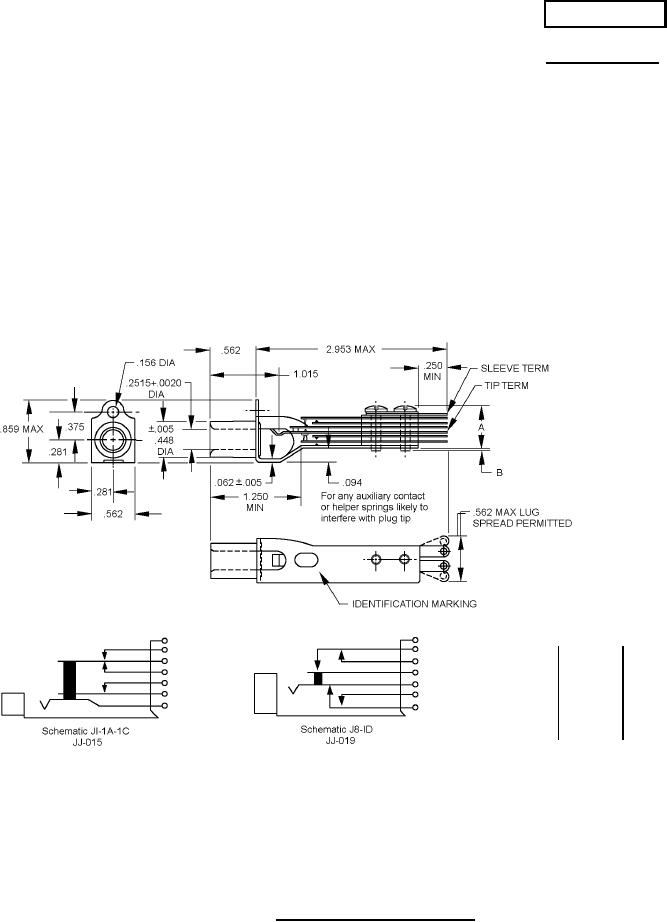

FIGURE 1. Dimensions and configuration.
