MIL-DTL-641/19F

Inches

mm Inches

.002

0.05 .100

2.54

.010

0.25 .220

5.60

.035

0.89 .795

20.19

.061

1.55

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. All dimensions are after plating.

4. Solder lug terminals (not shown) shall meet the requirements of MIL-DTL-641, 3.5.5, and the "A"

dimensions of figure 1 shall be .325 inch (8.26mm) maximum.

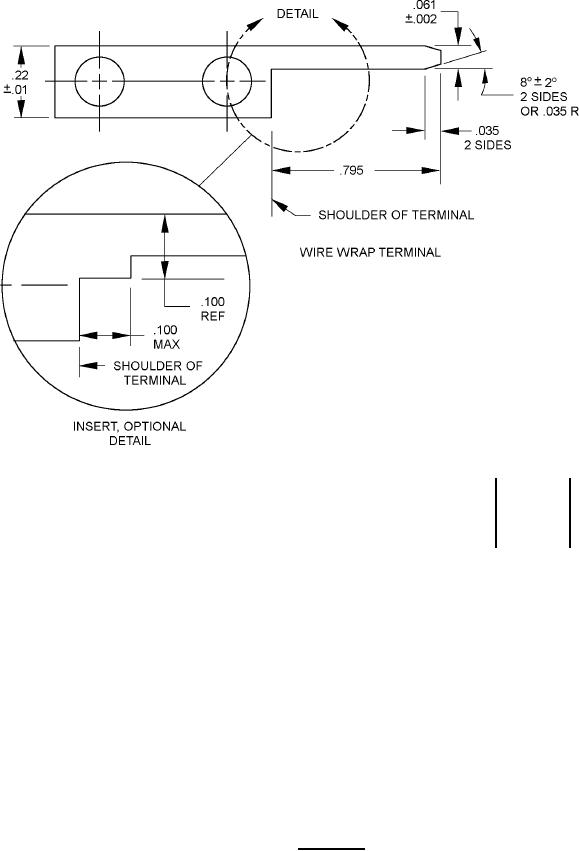

FIGURE 3. Terminals.
