MIL-DTL-641/8E
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.094
2.39
.188
4.78
.374
9.50
.005
0.13
.109
2.39
.218
5.54
.378
9.60
.015
0.38
.110
2.79
.224
5.69
.480
12.20
.040
1.02
.125
3.18
.240
6.10
.531
13.49
.062
1.57
.130
3.30
.312
7.92
.632
16.05
.077
1.96
.140
3.56
.328
8.33
.637
16.18
.079
2.01
.154
3.91
.335
8.51
.812
20.62
.086
2.18
.158
4.01
.340
8.64
1.438
36.53
.087
2.21
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
FIGURE 1. Dimensions and configuration - Continued.
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Insertion and withdraw forces shall be as follows.
Insertion force -
6 pounds (maximum).
Withdraw force -
3 pounds (minimum).
-
6 pounds (maximum).
Spring life test is applicable. Test plug TP291, in accordance with MIL-DTL-641, shall be used.
Voltage breakdown shall not occur between the springs when the mating plug is inserted. Evidence of
failure shall be checked using 500 volts ac.

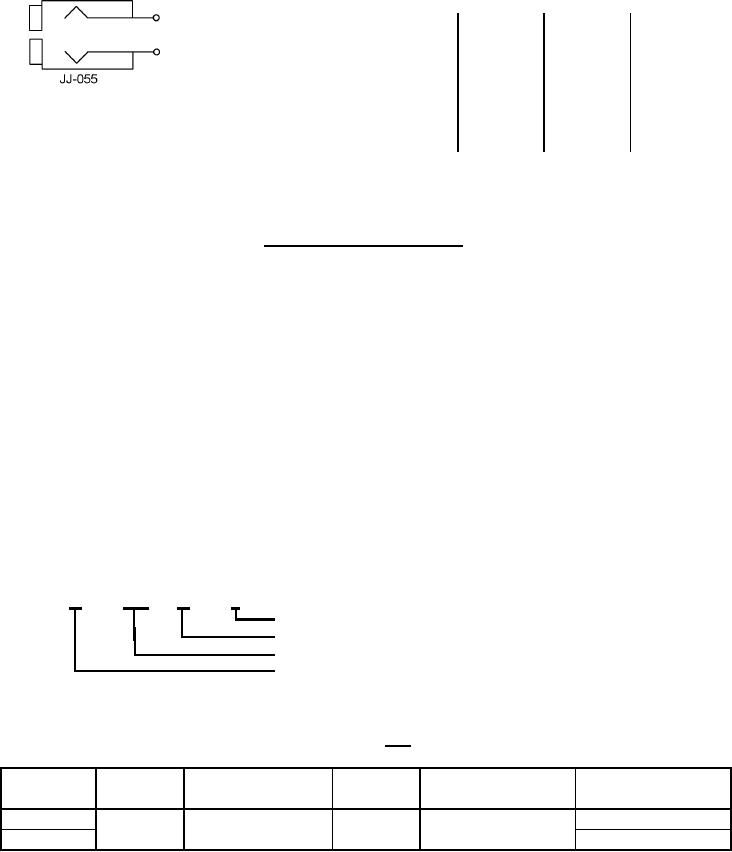

The Part or Identifying Number (PIN) consists of the letter M, the basic specification number, the
specification sheet number, and a number for jack type. (see table I)
M
641
/8
-
1
Type designation
Specification sheet number
Specification number
M prefix
PIN example: M641/8-1 indicates type JJ-055 telephone jack.
TABLE I. PIN.
Switching action upon
Dash number
Type
Connection
Mounting
Color
insertion of plug
Black
1
JJ-055
Miniature two - pin
Cord
None
Red
2
2
