MIL-DTL-642/9B
Inches
mm
Inches
mm
Inches
mm
Inches
mm Inches
mm Inches
mm
.002
0.05
.046
1.18
.190
4.83
.375
9.53
.765
19.43 1.312
33.32
.003
0.08
.062
1.57
.218
5.54
.453
11.51 .855
21.72 1.328
33.73
.005
0.13
.099
2.51
.244
6.20
.470
11.94 .937
23.80 1.781
45.24
.008
0.20
.125
3.18
.250
6.35
.600
15.24 .960
24.38 2.250
57.15
.015
0.38
.170
4.32
.281
7.14
.625
15.88 1.187
30.15 2.656
67.46
.031
0.79
.172
4.37
.312
7.92
.650
16.51 1.209
30.71 3.625
92.08
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance is ±.010 (.25mm).
4. After assembly, the eccentricity between the end of the shank and the tip of the plug shall not exceed
.008 inch (.20mm) total indicator reading (TIR).

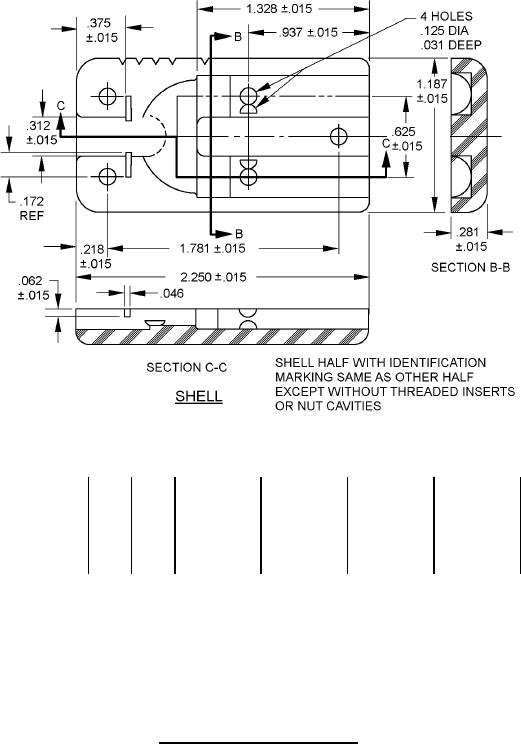

FIGURE 1. Dimensions and configuration - Continued.
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Shell shall be black plastic in accordance with MIL-DTL-642.
Terminal screws shall be .086-64 UNF-2A in accordance with MIL-DTL-642/12.
2
