MIL-DTL-83513/11D
Inches
mm
.040
1.02
.050
1.27
.100
2.54
.108
2.74
.125
3.18
1.215
30.86
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are .005 (0.013 mm).

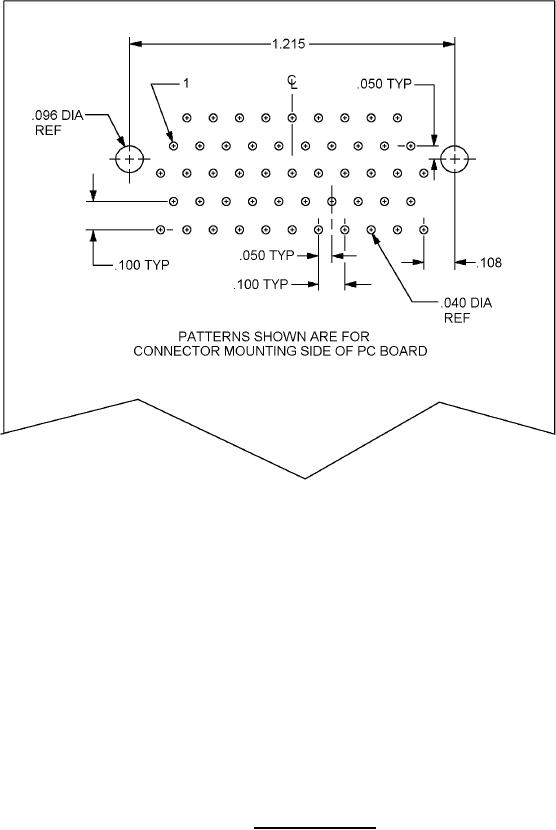

FIGURE 3. Layout arrangement.
