MIL-DTL-83513-17 Connectors, Electrical, Rectangular, Plug, Microminiature, Polarized Shell, Right Angle, Pin Contacts, 3 Row, Solder Type, Standard Profile, 51 Contacts, Printed Circuit Board

Pages 1 - 2 - 3 - 4 - 5 - 6


MIL-DTL-83513/17D
Inches
mm
.040
1.02
.050
1.27
.096
2.44
.100
2.54
.150
3.80
1.600
40.64

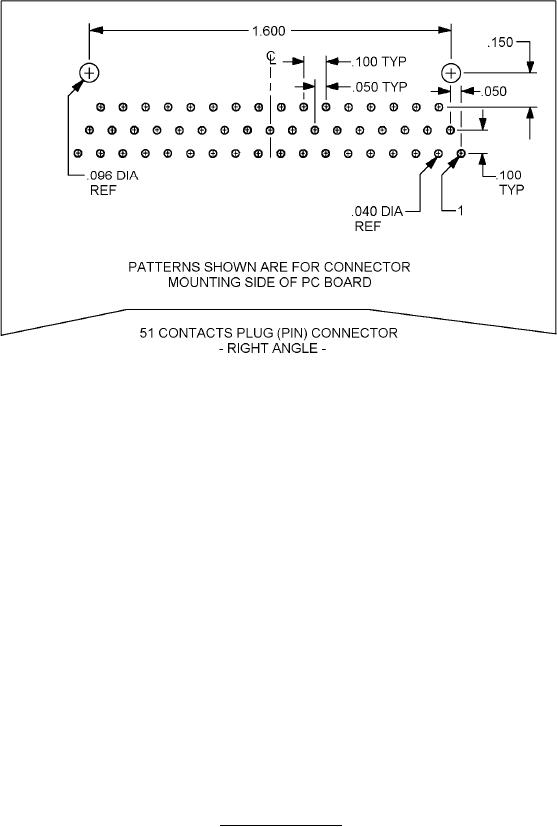

FIGURE 3. Layout arrangement.
