MIL-DTL-83513-21 Connectors, Electrical, Rectangular, Receptacle, Microminiature, Polarized Shell, Right Angle, Socket Contacts, 4 Row, Solder Type, Standard Profile, 100 Contacts, Printed Circuit Board

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-DTL-83513/21D

Inches

.040

1.02

.050

1.27

.100

2.54

.125

3.17

.150

3.81

2.500

63.50

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

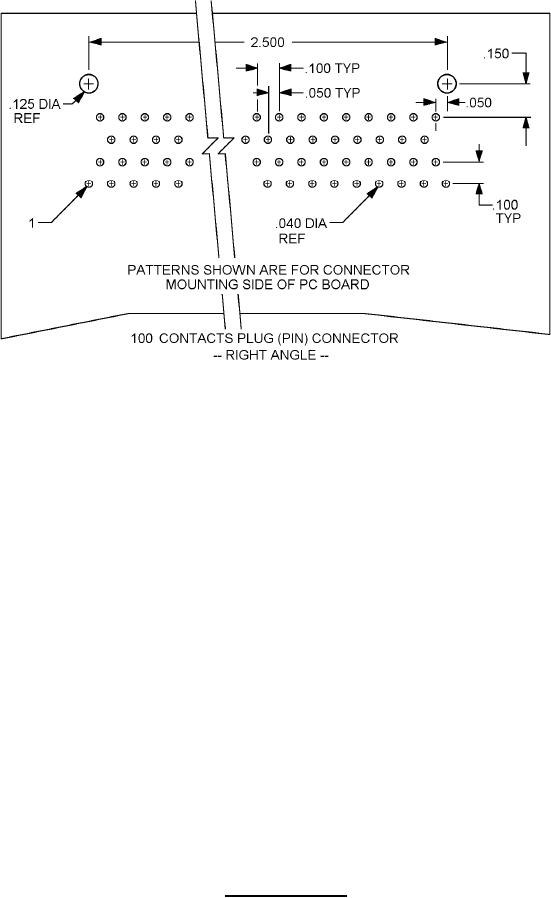

FIGURE 3. Layout arrangement.
