MIL-DTL-83513/23D
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for information only.
3.
Unless otherwise specified, tolerances are +.005 inch (0.13 mm).
4.
Termination organization area to be optionally molded or filled with a potting fill material capable of passing the
electrical and environmental requirements of MIL-DTL-83513. Plastic molding shall conform to type GDI-30F or
type SDG-F in accordance with ASTM D5948 or GCT-30F in accordance with ASTM D5927 or MIL-M-24519 or
GST-40F in accordance with ASTM D4067 or MIL-M-24519 or GLCP-30F or GLCP-50 in accordance with
ASTM D5138 or MIL-M-24519.
5.
Metal shell shall be of material in accordance with MIL-DTL-83513 for class M parts.
6.
Jackpost (securely attached) when specified: Corrosion resistant steel in accordance with ASTM A484/A484M
and ASTM A582/A582M, 300 series stainless steel, passivated in accordance with SAE-AMS-2700, type 2.
Hardware will be attached in such a fashion as to not loosen during normal de-mating conditions, where as, the
mating connector hardware does not exceed the following torque values: 2.5 inch pounds for #2-56
(arrangements A G) and 4.5 inch pounds for #4-40 (arrangement H).
7.
Separately molded plastic body (if used) shall conform to type GDI-30F or type SDG-F in accordance with
ASTM D5948 or GCT-30F in accordance with ASTM D5927 or MIL-M-24519 or GST-40F in accordance with
ASTM D4067 or MIL-M-24519 or GLCP-30F or GLCP-50 in accordance with ASTM D5138 or MIL-M-24519
8.
Wire termination pins shall conform to A-A-59551, number 24 AWG copper, except shall be tin-lead plated with
a minimum of 3 percent lead.
Termination lengths available: .109 inch (2.77 mm), .140 inch (3.56 mm) or .172 inch (4.37 mm). The
9.
tolerance shall be +.015 inch (0.381 mm) for all termination lengths.
10.
Threaded insert, when specified: Corrosion resistant steel in accordance with ASTM A484/A484M and ASTM
A582/A582M, 300 series stainless steel, passivated in accordance with SAE-AMS-2700, type 2.

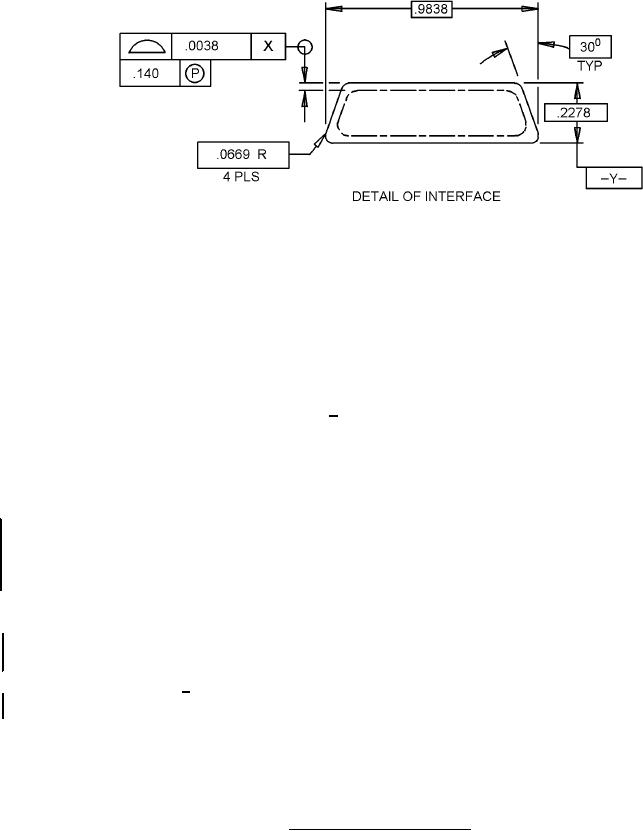

FIGURE 1. Connector plug, .050 spacing - Continued.
