MIL-DTL-83513/26D
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.003
0.08
.0671
1.70
.185
4.70
1.215
30.86
.007
0.18
.096
2.44
.190
4.83
1.775
45.09
.0038
0.097
.130
3.30
.2282
5.796
2.000
50.80
.015
0.38
.144
3.66
.351
8.92
2.280
57.91
.025
0.64
.150
3.81
.355
9.02
.050
1.27
.165
4.19
.9842
24.999
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for information only.
Unless otherwise specified, tolerances are .005 inch (0.13 mm).
3.
4.
Termination organization area to be optionally molded or filled with a potting fill material capable of passing the
electrical and environmental requirements of MIL-DTL-83513. Plastic molding shall conform to type GDI-30F or
type SDG-F in accordance with ASTM D5948 or GCT-30F in accordance with ASTM D5927 or MIL-M-24519 or
GST-40F in accordance with ASTM D4067 or MIL-M-24519 or GLCP-30F or GLCP-50 in accordance with
ASTM D5138 or MIL-M-24519.
5.
Metal shell shall be of material in accordance with MIL-DTL-83513 for class M parts.
6.
Jackpost (securely attached) when specified: Corrosion resistant steel in accordance with ASTM A484/A484M
and ASTM A582/A582M, 300 series stainless steel, passivated in accordance with SAE-AMS-2700, type 2.
Hardware will be attached in such a fashion as to not loosen during normal de-mating conditions, where as, the
mating connector hardware does not exceed the following torque values: 2.5 inch pounds for #2-56
(arrangements A G) and 4.5 inch pounds for #4-40 (arrangement H).
7.
Separately molded plastic body (if used) shall conform to type GDI-30F or type SDG-F in accordance with
ASTM D5948 or GCT-30F in accordance with ASTM D5927 or MIL-M-24519 or GST-40F in accordance with
ASTM D4067 or MIL-M-24519 or GLCP-30F or GLCP-50 in accordance with ASTM D5138 or MIL-M-24519
8.
Wire termination pins shall conform to A-A-59551, number 24 AWG copper, except shall be tin-lead plated with
a minimum of 3 percent lead.
9.
Interfacial seals are included with each type receptacle connector.
10.
Termination lengths available: .109 inch (2.77 mm), .140 inch (3.56 mm), or .172 inch (4.37 mm). The
tolerance shall be .015 inch (0.38 mm) for all termination lengths.
11.
Threaded insert, when specified: Corrosion resistant steel in accordance with ASTM A484/A484M and
ASTM A582/A582M, 300 series stainless steel, passivated in accordance with SAE-AMS-2700, type 2.

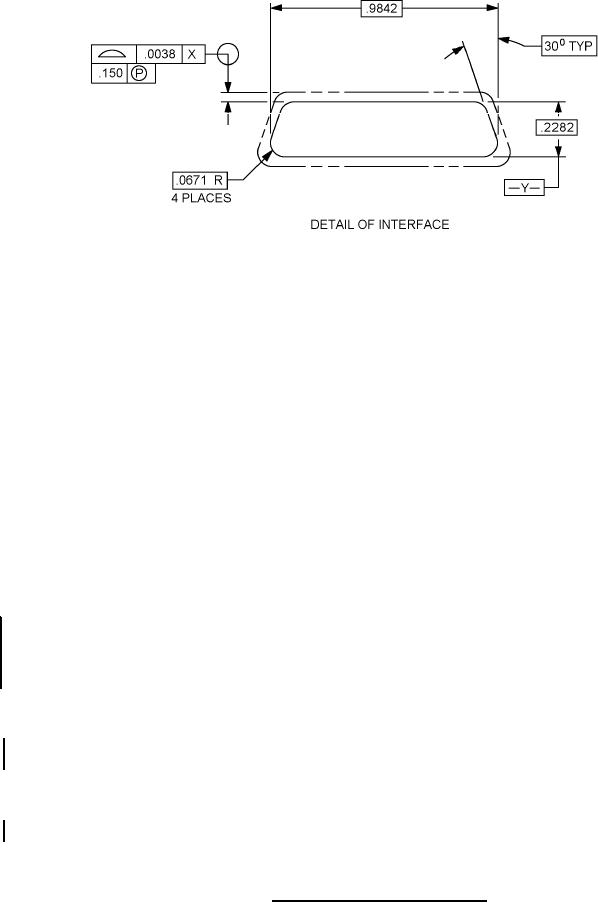

FIGURE 1. Connector receptacle, .050 spacing - Continued.
