MIL-DTL-83517/4A
Inches
mm
.015
0.38

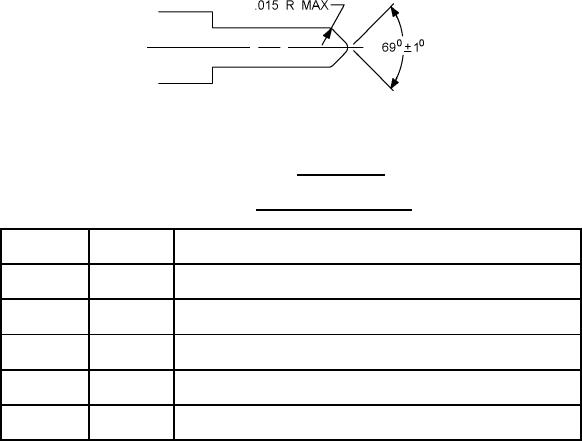

FIGURE 4. Test pin data.
TABLE I. PIN and characteristics.
PIN
Connector
Characteristics
M83517/4-
figure no.
31001
1
2 hole flange receptacle. .010 inch (0.25 mm) diameter
terminal for .057 inch (1.45 mm) thick panel.
31002
1
2 hole flange receptacle. .010 inch (0.25 mm) diameter
terminal for .125 inch (3.18 mm) thick panel.
31003
2
4 hole flange receptacle. .010 inch (0.25 mm) diameter
terminal for .057 inch (1.45 mm) thick panel.
31004
2
4 hole flange receptacle. .010 inch (0.25 mm) diameter
terminal for .125 inch (3.18 mm) thick panel.
31005
3
4 hole flange receptacle. .050 inch (1.27 mm) diameter
terminal.
Permeability of nonmagnetic materials: Applicable.
Seal:
Hermetic sealed connectors: Not applicable.
Pressurized and weatherproof connectors: Not applicable.
Insulation resistance: 5,000 megohms minimum in accordance with test procedure EIA-364-21.
Center contact retention:
Axial force: 6 pounds minimum.
Torque: 4 inch-ounces minimum.
Dielectric withstanding voltage: In accordance with test procedure EIA-364-20, test condition I.
Test voltage 1,000 V rms.
Corrosion: In accordance with test procedure EIA-364-26, test condition B.
