MIL-DTL-83517/8A
Contact gaging: See figure 2.
Contacts with spring members:
Center contact (socket):
Oversize test pin - .0375 +.0001.
Test pin finish 16 microinches.
Insertion depth - .030/.045.
Number of insertions 3.
Insertion force test: Steel test pin diameter .0370 + .0001.
Insertion depth - .050/.075.
Test pin finish 16 microinches.
Insertion force 3 pounds maximum.
Withdrawal force test: Steel test pin diameter .0355 - .0001.
Insertion depth - .050/.075.
Withdrawal force 1 ounce minimum.
Test pin finish 16 microinches.
Inches mm
.015 0.38

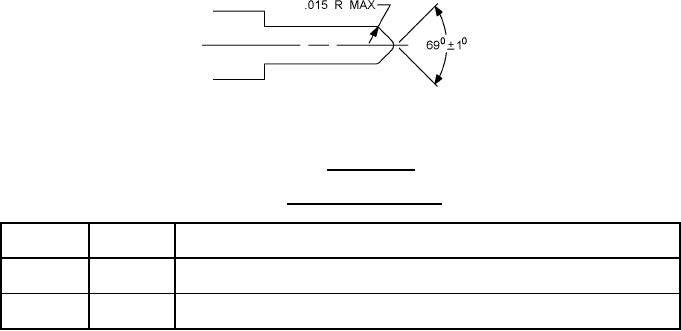

FIGURE 2. Test pin data.
TABLE I. PIN and characteristics.
PIN
Connector
Characteristics
M83517/8-
figure no.
31001
1
Strip transmission line surface launch, right angle receptacle for .125 inch
(3.18 mm) strip transmission line.
31002
1
Strip transmission line surface launch, right angle receptacle, for .250
inch (6.35 mm) strip transmission line.
Permeability of nonmagnetic materials: Applicable.
Seal:
Hermetic sealed connectors: Not applicable.
Pressurized and weatherproof connectors: Not applicable.
3
