INCH-POUND
MIL-DTL-83723/72E
19 August 2009
SUPERSEDING
MIL-DTL-83723/72D
15 September 2006
DETAIL SPECIFICATION SHEET
CONNECTOR, ELECTRIC, (CIRCULAR, ENVIRONMENT RESISTING),
RECEPTACLE, (FLANGE MOUNT, BAYONET COUPLING, CRIMP PIN CONTACT)
(SERIES III, CLASSES A, G, M, R, T, W AND Z)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-83723.

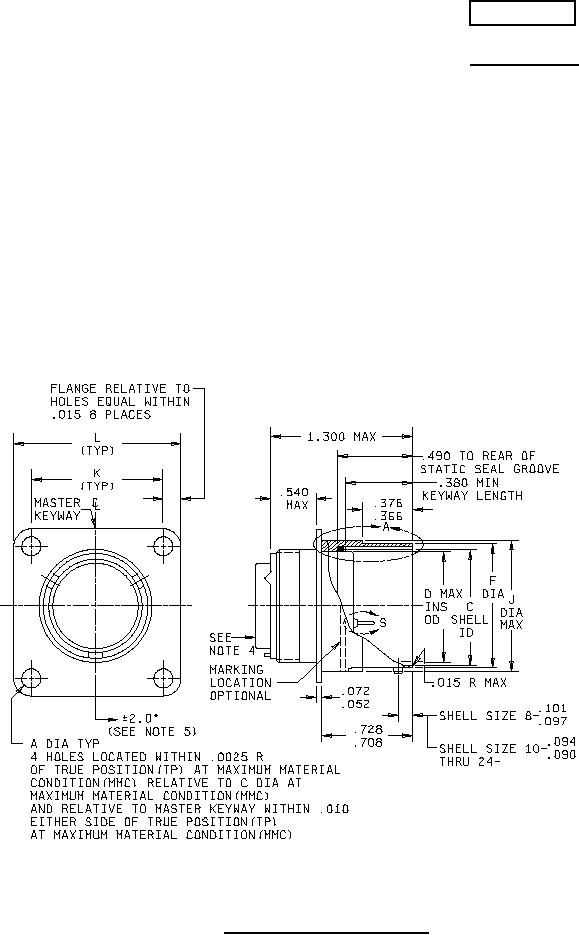

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5935
