MIL-DTL-83723/75E
A
G
H
J
L
U
V
Shell
size
max
min
min
max
8
.312
.352
.415
.540
.632
.776
.025
.424
.545
10
.388
.428
.517
.662
.760
.906
.031
.526
.667
12
.558
.598
.687
.832
.930
1.078
.031
.696
.837
14
.627
.667
.756
.901
.999
1.141
.031
.765
.906
16
.772
.794
.883
1.028
1.126
1.266
.031
.892
1.033
18
.860
.900
.989
1.134
1.232
1.375
.031
.998
1.139
20
.985
1.025
1.114
1.261
1.357
1.510
.031
1.123
1.266
22
1.110
1.150
1.239
1.384
1.482
1.625
.031
1.248
1.389
24
1.235
1.275
1.364
1.511
1.607
1.760
.031
1.373
1.516

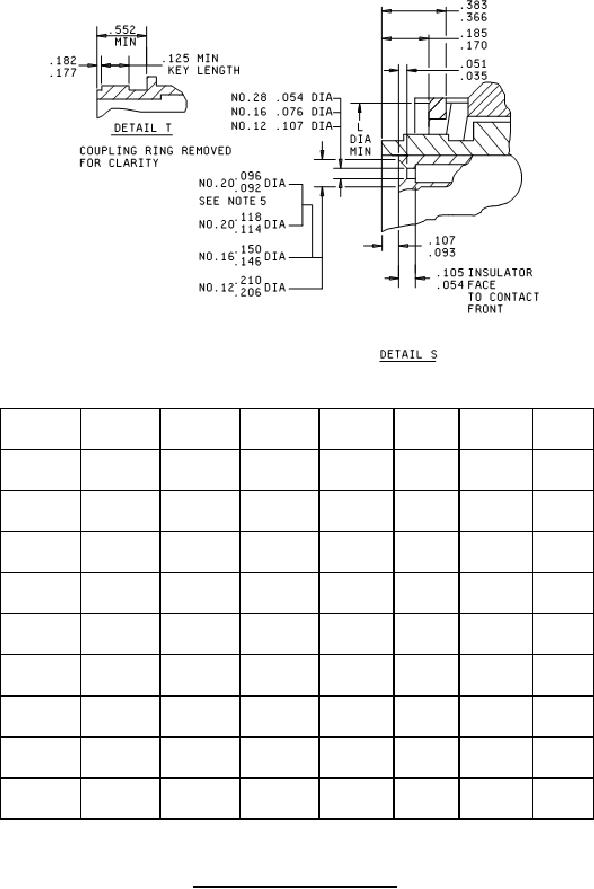

FIGURE 1. Dimensions and configurations - Continued.
