MIL-DTL-83723/89F
A
Shell
B
C
D
E
F
thread
size
8
.562-24 UNEF-2A
.394
.418 / .413
.290
.562
.137 / .097
10
.688-24 UNEF-2A
.515
.535 / .530
.388
.696
.137 / .097
12
.875-20 UNEF-2A
.685
.700 / .705
.558
.875
.137 / .097
14
.938-20 UNEF-2A
.754
.774 / .769
.627
.936
.137 / .097
16
1.062-18 UNEF-2A
.881
.901 / .896
.772
1.062
.137 / .097
18
1.188-18 UNEF-2A
.987
1.007 / 1.002
.860
1.187
.137 / .097
22
1.438-18 UNEF-2A
1.237
1.257 / 1.252 1.110
1.437
.148 / .128
M
Shell
N
P
R
W
X
size
thread
8
.625-20 UN-2A
.670
.980 / .949
1.078 / 1.047
.400
.180 / .120
10
.750-20 UNEF-2A
.796
1.104 / 1.073
1.192 / 1.162
.411
.180 / .120
12
.938-20 UNEF-2A
.984
1.291 / 1.260
1.380 / 1.349
.581
.180 / .120
14
1.000-20 UNEF-2A
1.046
1.391 / 1.360
1.516 / 1.485
.650
.180 / .120
16
1.125-18 UNEF-2A
1.171
1.516 / 1.485
1.641 / 1.610
.777
.180 / .120
18
1.250-18 UNEF-2A
1.296
1.641 / 1.610
1.766 / 1.735
.864
.180 / .120
22
1.500-18 UNEF-2A
1.609
1.954 / 1.923
2.078 / 2.047
1.133
.169 / 1.09

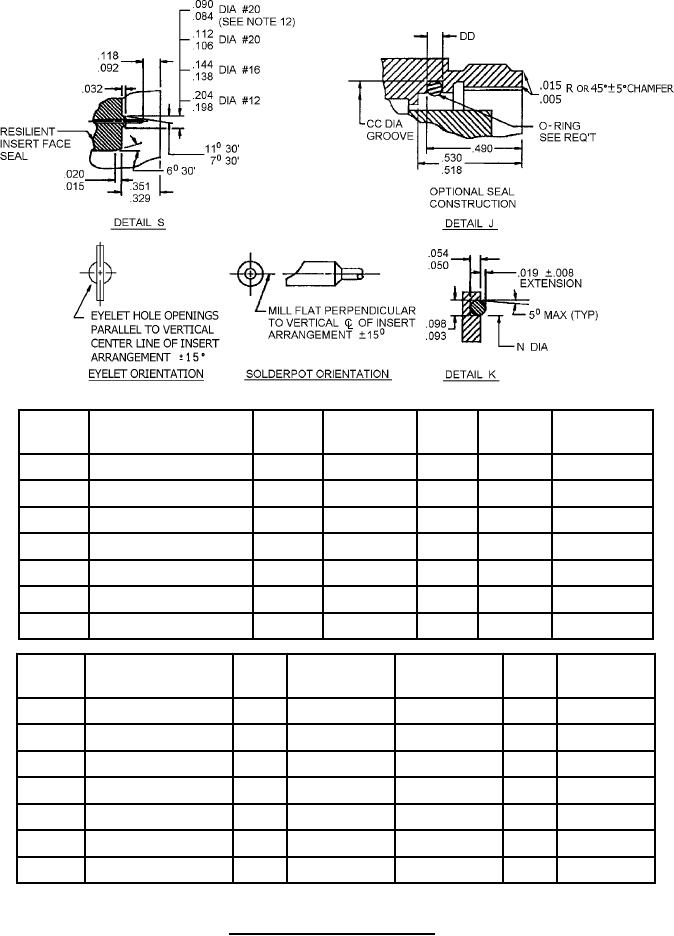

FIGURE 1. Dimensions and configurations Continued.
