INCH-POUND
MIL-DTL-83733/17A
31 January 2011
SUPERSEDING
MIL-C-83733/17 (USAF)
28 July 1986
DETAIL SPECIFICATION SHEET
CONNECTORS, RACK TO PANEL, SPRING LOADED,
MOUNTING ASSEMBLY
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-83733.
.343
HEX
.138-32 UNC-2B
1.260
1.240
.380
DIA. MAX
2.11
.207
DIA.
Inches
mm
.138
3.51
.207
3.50
.211
5.35
.343
8.71
.380
9.65
NOTES:
1.
Dimensions are in inches. Metric equivalents are given for information only.
2.
Assembly preload to be 25 pounds ± 3 pounds.
3.
Material: Corrosion-resistant steel.
4.
Finish: Passivated.

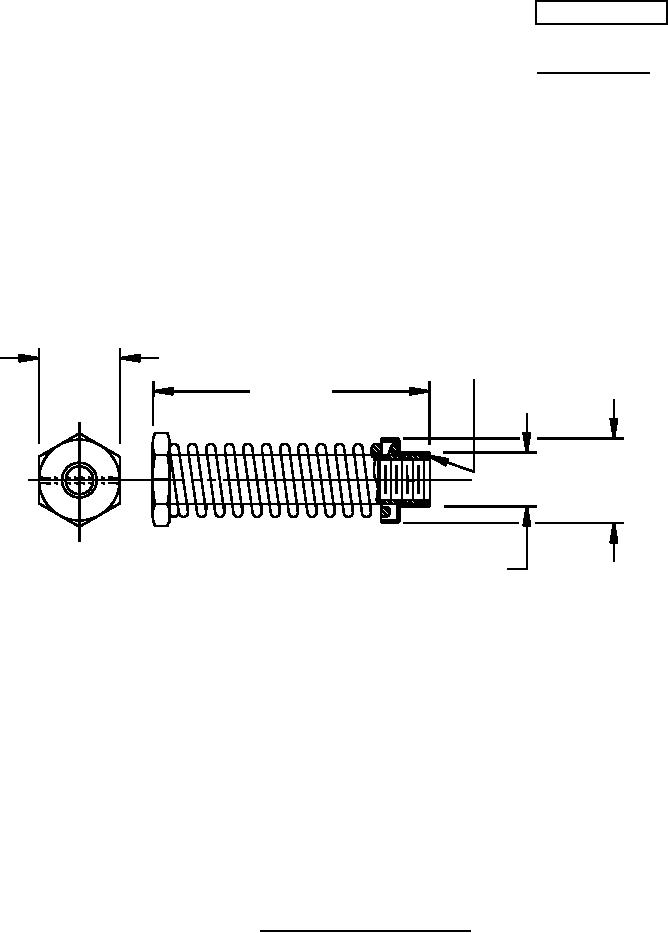

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5935
