INCH-POUND
MIL-DTL-83733/5C
31 January 2011
SUPERSEDING
MIL-C-83733/5B(USAF)
10 December 1980
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECEPTACLE, PIN CONTACT, MINIATURE,
RECTANGULAR TYPE, RACK TO PANEL, BUSHING MOUNTING,
ENVIRONMENT RESISTING, 200°C
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-83733.
L
M
.566
1.170
.558
1.146
SEE NOTE 3
RECOMMENDED SCREW
(NO.6) .138-32 UNC-2A FLH
.38 LONG
SEE NOTE 6
.286
DIA
.276
(FLANGE HOLE)

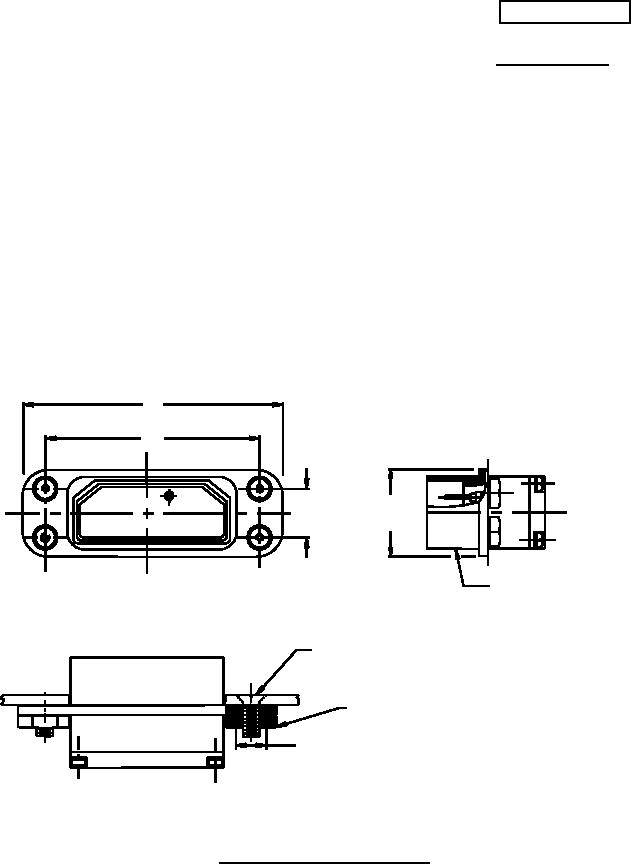

FIGURE 1. Dimensions and configurations.
