INCH-POUND
MIL-DTL-83733/7E
31 January 2011
SUPERSEDING
MIL-C-83733/7D(USAF)
28 July 1986
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECEPTACLE, SOCKET CONTACT, MINIATURE,
RECTANGULAR TYPE, RACK TO PANEL, WITH GUIDE SOCKETS AND SPRING MOUNTING,
ENVIRONMENT RESISTING, 200°C
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-83733.
1.250 MAX
L
(SPRING IN FREE
POSITION)
SEE NOTES
M
.196
6, 7 AND 8
.036
.566
1.170
.558
1.146
.415
138-32 UNC-2B
.395
3125-24 UNF-2A
(2) REQUIRED
ACROSS HEX FLATS
SEE NOTE 2
.360
DIA
.350
.209
DIA
.205
16°
14°
.485
.470

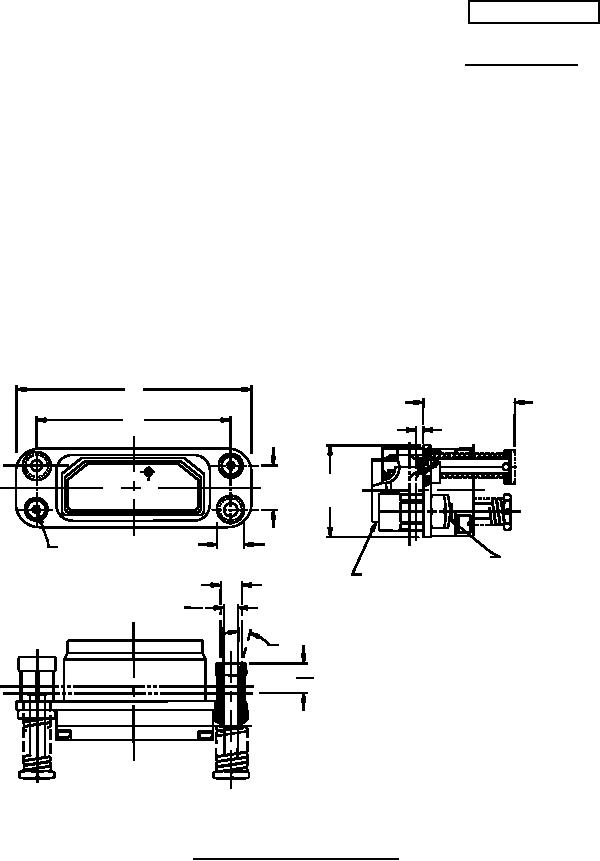

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5935
