INCH-POUND
MIL-DTL-83733/9C
31 January 2011
SUPERSEDING
MIL-C-83733/9B (USAF)
10 December 1980
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECEPTACLE, PIN CONTACT, MINIATURE,
RECTANGULAR TYPE, RACK TO PANEL, STAGGERED STANDARD HOLE MOUNTING,
ENVIRONMENT RESISTING, 200°C
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-83733.
L
M
.286
DIA
.276
(2 HOLES)
.566
1.170
.558
1.146
.223
DIA
.213
(4 PLACES)
SEE NOTE 3
N

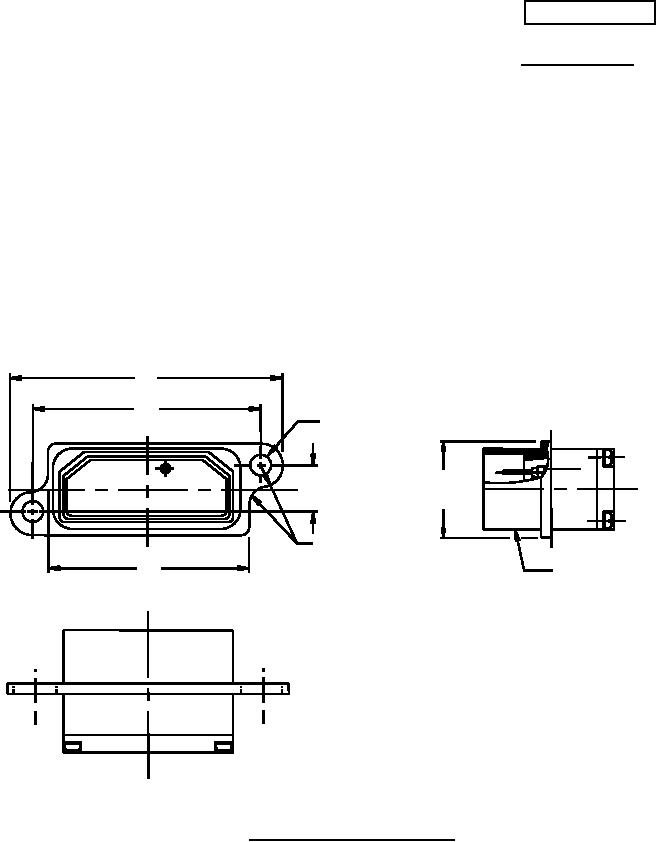

FIGURE 1. Dimensions and configurations.
.
