INCH-POUND
MIL-DTL-83734/13E
30 April 2007
SUPERSEDING
MIL-DTL-83734/13D
24 September 2001
DETAIL SPECIFICATION SHEET
SOCKETS, PLUG-IN ELECTRONIC COMPONENTS,
(FOR 20 PIN DUAL-IN-LINE PACKAGES)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and
MIL-DTL-83734.
B

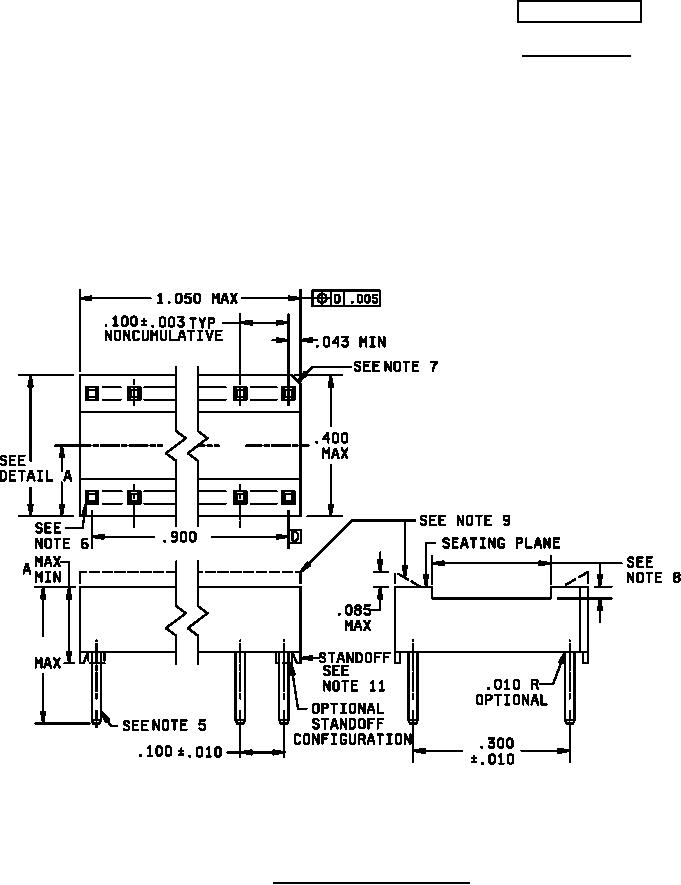

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
