MIL-DTL-9177/2C(USAF)
Inches
mm
Inches
mm
Inches mm
Inches mm
.010
0.25
.080
2.03
.250
6.35
.875 22.22
.0156
0.396
.112
2.84
.251
6.38
.999 25.37
.020
0.51
.125
3.18
.280
7.11
1.531 38.89
.031
0.79
.185
4.70
.282
7.16
1.70
43.2
.0312
0.792
.191
4.85
.312
7.92
1.719 43.66
.076
1.93
.249
6.32
.562 14.27
1.80
45.7
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm).
4. All undimensioned pictorial representations are for reference purposes only.

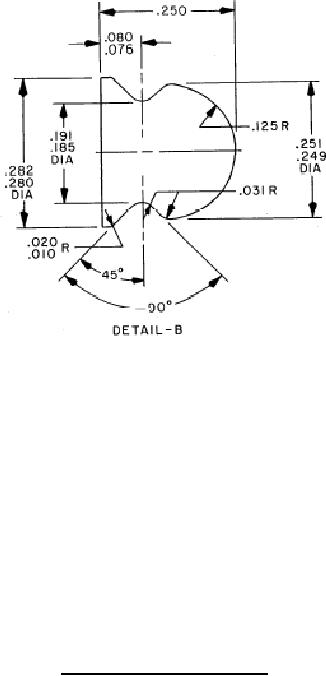

FIGURE 1. Dimensions and configurations Continued.
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Torque: The torque test is applicable.
Controlled drop: The controlled drop test is applicable.
Stack assembly: The stack assembly test is applicable.
3
