MIL-PRF-31031/1B
Inches
mm
0.00
.000
0.08
.003
0.10
.004
2.18
.086
7.11
.280
9.58
.377
14.22
.560
Spring compression force and travel: The face of the push-on interface shall have a total travel
capability of .060 inch (1.52 mm) toward the connector retainer clip. Force versus displacement shall be
as follows:
Displacement
Force
inches (mm)
pounds
3.0 ±.5
.010 (0.025)
3.7 ±.5
.050 (1.27)
3.8 ±.5
.060 (1.52)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

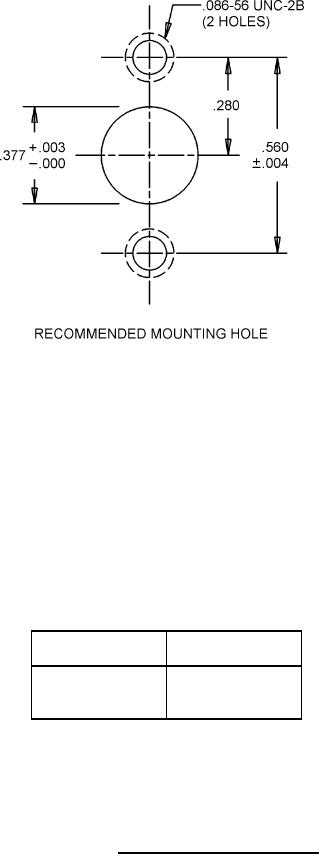

FIGURE 2. Recommended mounting hole.
2
