MIL-PRF-39012/21B
M39012/21-X001
M39012/21-X002
M39012/21-X003
Inches
mm
Inches
mm
.022
.56
.368
9.35
.059
1.50
.375
9.53
.087
2.21
.380
9.65
.099
2.51
.384
9.75
.153
3.89
.429
10.90
.156
3.96
.434
11.02
.159
4.04
.439
11.15
.181
4.60
.443
11.25
.184
4.67
.495
12.57
.187
4.75
.505
12.83
.190
4.83
.508
12.90
NOTES:
1. Dimensions are in inches.
2. For dimensions `A', `B', `C', see table I.
3. Dimension `B' is the largest overall diameter of the connector.
4. Metric equivalents are given for information only.
5. Orientation of mounting flats and bayonet studs shall be within ± 3° of the orientation shown.
6. All undimensioned pictorial representations are for reference purposes only.
7. Interface dimensions shall be in accordance with MIL-STD-348, socket contact.

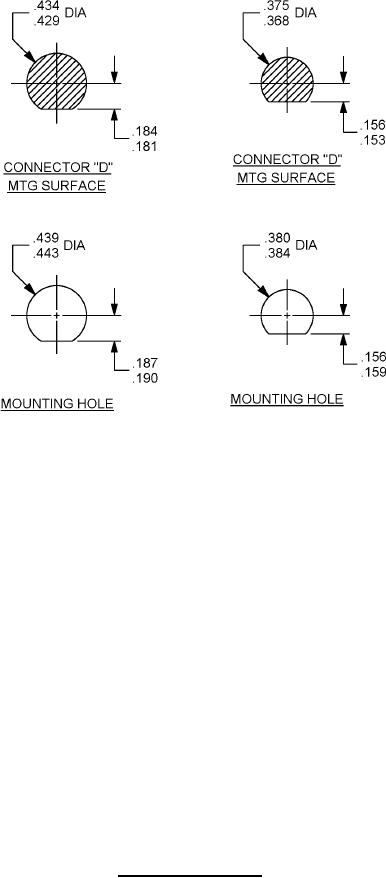

FIGURE 1. General configuration Continued.
2
