MIL-PRF-39012/79G
TABLE I. Dash numbers and dimensions Continued.
*
Cable to be used when performing test requiring cable. All cable dash numbers in accordance with
MIL-DTL-17 specification sheet accommodate this connector.
1/ MIL-DTL-17 cables are specified by the basic number. The latest version of each cable shall be
Applicable
2/ The dimension A, before crimping, determines the closeness of a bend in the cable to the rear of the
connector.
3/ These connectors have captivated center contacts.
4/ For logistics purposes, only connectors with safety wire holes will be stocked.
5/ Coupling nuts shall be corrosion-resistant steel with a passivated finish in accordance with
SAE-AMS2700, type 2. (Applies to "-3XXX" series connectors only).
6/ No safety wire holes.
7/ Kit number Omni Spectra T-200, Amphenol 901-2500 or equivalent.
8/ All corrosion-resistant steel-bodied connectors shall be gold plated in accordance with ASTM B488,
type II, grade C, class 1.27, at least in the area of solder attachment.
9/ This dimension is furnished in manufacturers assembly instructions.
10/ Gasket material shall be in accordance with SAE-AMS7276, SAE-AMS7259, SAE-AMS3216 and
SAE-AMS3218.
11/ The locators required shall be indicated in the assemble instructions.
12/ Not for Army use, for OEM use only.
Cable *
Dimension "A"
Minimum
Maximum
M17/130-RG402
.080
.090
(2.03 mm)
(2.29 mm)
M17/133-RG405
.065
.075
(1.65 mm)
(1.91 mm)
* Dimensions apply to all cables on the below
specification sheets.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Tapering of center conductor is optional.

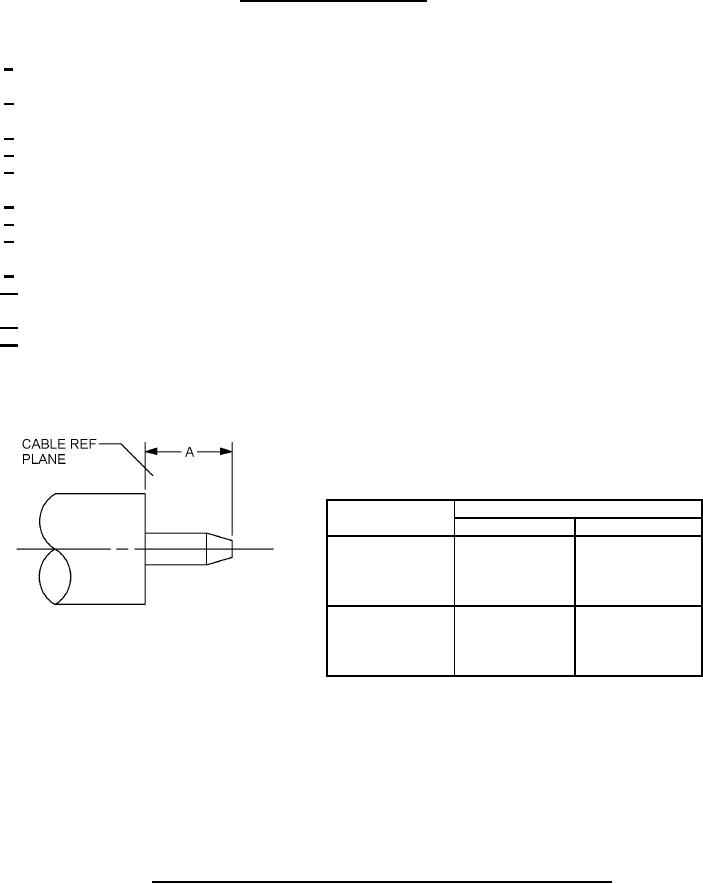

FIGURE 2. Cable stripping dimensions for category E and category F connectors.
4
