INCH-POUND
MIL-PRF-39012/93C
12 January 2014
SUPERSEDING
MIL-PRF-39012/93B
25 January 1995
PERFORMANCE SPECIFICATION SHEET
CONNECTORS, RECEPTACLES, ELECTRICAL, COAXIAL, RADIO FREQUENCY,
(SERIES SMA (UNCABLED), FEMALE, PRINTED CIRCUIT, CLASS 2)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-39012.
Dash number
Dimension A
Maximum overall length
(x = shell material)
inches (mm in parentheses)
inches (mm in parentheses)
X001
.155 (3.94 ) ± .010 (0.25)
.545 (13.64)
X002
.125 (3.18) ± .010 (0.25)
.515 (13.08)
X003
.093 (2.36) ± .010 (0.25)
.483 (12.27)
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.001
0.02
.008
0.20
.100
2.54
.375
9.53
.002
0.05
.050
1.27
.200
5.08
.005
0.13
.060
1.52
.367
9.32
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. All undimensioned pictorial configurations are for reference purposes only.
4. Configuration optional.
5. Series SMA, socket contact interface in accordance with MIL-STD-348.
6. All corrosion-resistant steel-bodied connectors shall be gold plated in accordance with ASTM B488, type 3,
grade C, class 1.27, at least in the area of solder attachment.

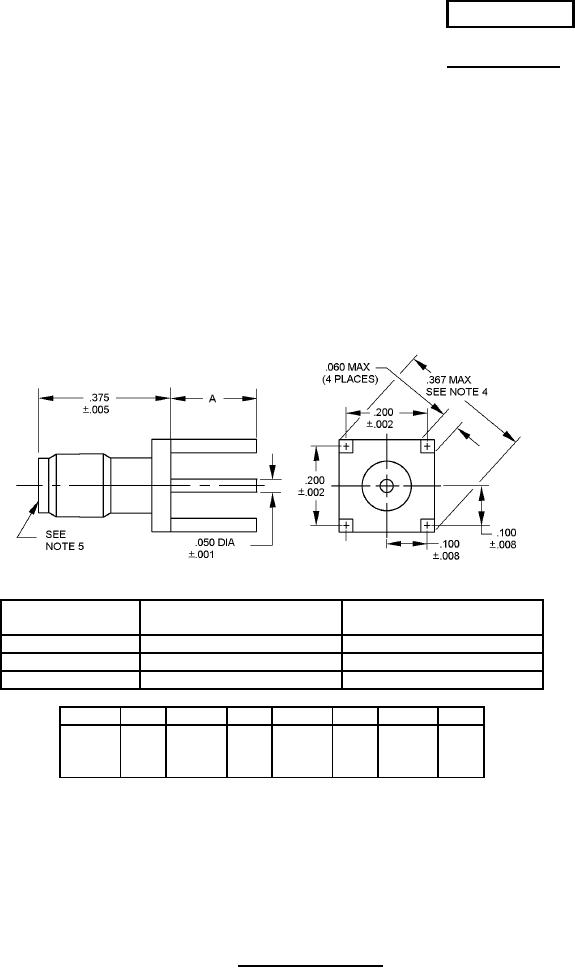

FIGURE 1. General configuration.
