MIL-PRF-39012/94C
Withdrawal force: 1 ounce minimum.
Hermetic seal: Not applicable.
Leakage (pressurized connectors): Not applicable.
Insulation resistance: Method 302, test condition B, MIL-STD-202: 5,000 megohms minimum.

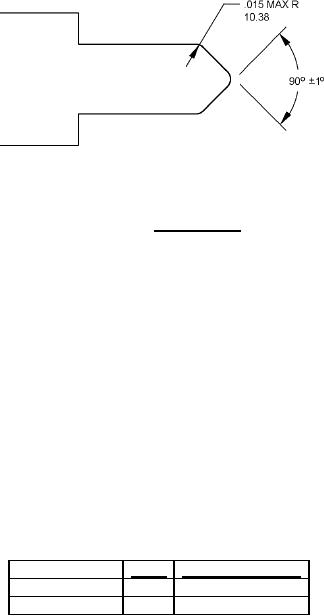

FIGURE 2. Test pin data.
Center contact retention:
Axial force: 6.0 pounds minimum.
Radial torque: 4 inch-ounces minimum.
Solderability: Method 208 of MIL-STD-202.
Corrosion (salt spray): Method 101, test condition B, MIL-STD-202.
Voltage standing wave ratio (VSWR): Not applicable.
Connector durability: Insertion and withdrawal force: 500 cycles minimum at 12 cycles per minute
maximum. The connector shall meet mating characteristics and force to engage and disengage
requirements.
Contact resistance (in milliohms maximum):
Initial
After environment
Center contact
3.0
4.0
Outer contact
2.0
Not applicable
Dielectric withstanding voltage at sea level: Method 301 of MIL-STD-202: 1,000 volts rms.
Vibration, high frequency: Method 204, test condition D, MIL-STD-202.
Shock (specified pulse): Method 213, test condition I, MIL-STD-202.
Thermal shock: Method 107, test condition B, MIL-STD-202 except test high temperature shall be
+125°C.
3
