INCH-POUND
MIL-PRF-55339/22A
17 September 2004
SUPERSEDING
MIL-PRF-55339/22
6 May 1975
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY, IN-LINE,
(BETWEEN SERIES BNC JACK TO SERIES C PLUG), CLASS 2
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the document described herein shall
consist of this specification sheet and MIL-PRF-55339.
Inches
mm
.781
19.84
1.266
32.16
Reference
Series
Contact
A
BNC
Socket
B
C
Pin
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All undimensioned pictorial representations are for reference purposes only.
4. Interface dimensions shall be in accordance with MIL-STD-348, series BNC socket contact and
series C pin contact.

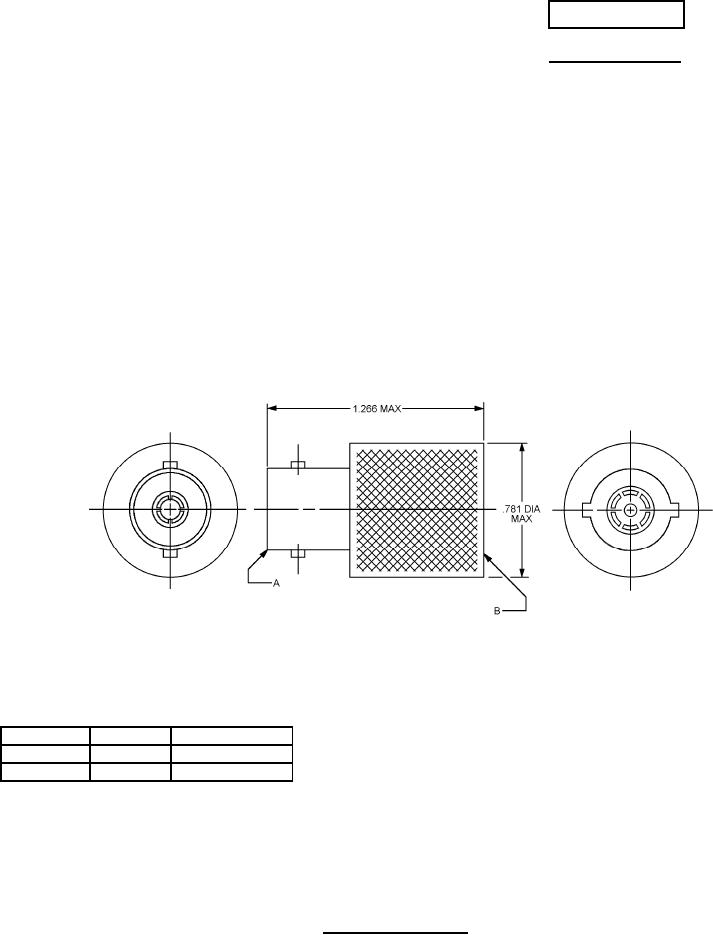

FIGUE 1. General configuration
AMSC N/A
FSC 5935
