INCH-POUND
MIL-PRF-55339/23A
17 September 2004
SUPERSEDING
MIL-PRF-55339/23
6 May 1975
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY, IN-LINE,
(BETWEEN SERIES C JACK TO SERIES BNC PLUG), CLASS 2
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the document described herein shall
consist of this specification sheet and MIL-PRF-55339.
Inches
mm
.610
15.06
1.593
40.46
Reference
Series
Contact
A
C
Socket
B
BNC
Pin
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. Metric equivalents are given for general information only.
4. All undimensioned pictorial representations are for reference purposes only.
5. Interface shall be in accordance with MIL-STD-348, series C socket contact and series BNC pin
contact.

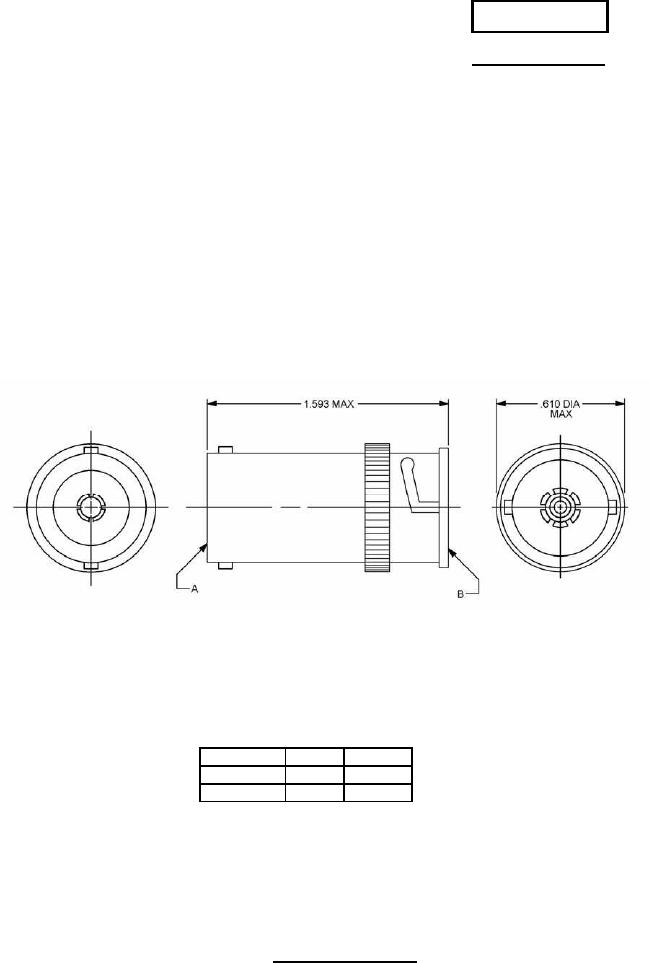

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
