INCH-POUND
MIL-PRF-55339/32A
17 September 2004
SUPERSEDING
MIL-PRF-55339/32
11 January 1977
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY,
(WITHIN SERIES TNC) RIGHT ANGLE, MALE TO FEMALE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the document described herein shall
consist of this specification sheet and MIL-PRF-55339.
Reference
Series
Contact
Inches
mm
.438
11.13
A
TNC
Socket
.650
16.51
1.017
25.83
B
TNC
Pin
1.062
26.97
NOTES:
1. Dimensions are in inches.
2. This dimension is the largest overall diameter of the connector.
3. Metric equivalents are given for general information only.
4. Shape of coupling nut is optional.
5. Interface shall be in accordance with MIL-STD-348, series TNC pin contact and series TNC
socket contact.

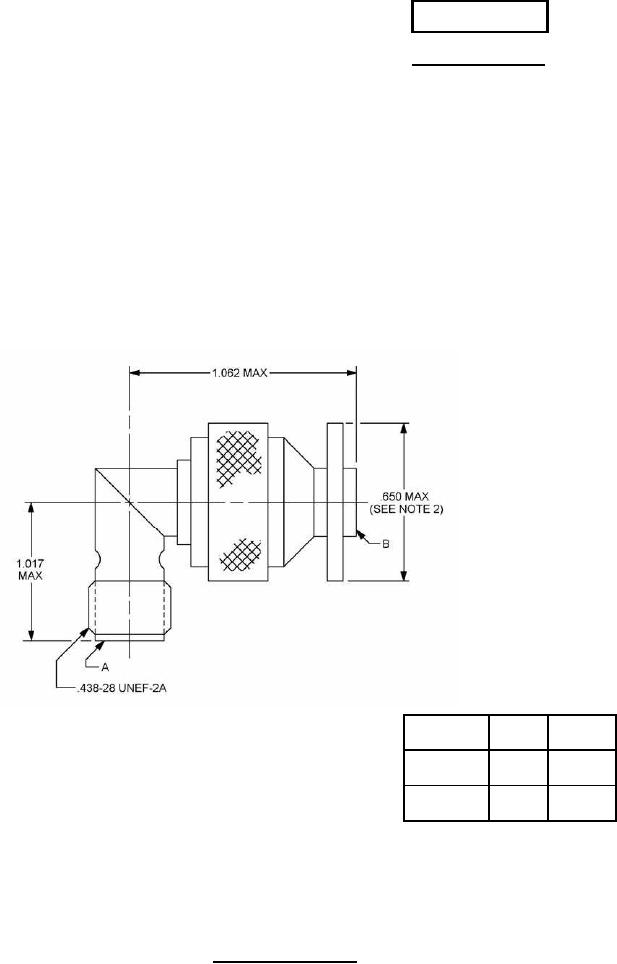

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
