INCH-POUND
MIL-PRF-55339/37A
10 January 2005
SUPERSEDING
MIL-PRF-55339/37
11 January 1977
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY
(BETWEEN SERIES BNC TO SERIES TNC), CLASS 2, STRAIGHT PLUG
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-PRF-55339.
Reference
Series
Contact
Inches
mm
A
BNC
Socket
.381
9.68
B
TNC
Socket
.382
9.70
.4375
11.11
1.291
32.79
NOTES:
1. Dimensions are in inches.
2. This dimension is the largest overall diameter of the connector.
3. Metric equivalents are given for information only.
4. Interface shall be in accordance with MIL-STD-348.

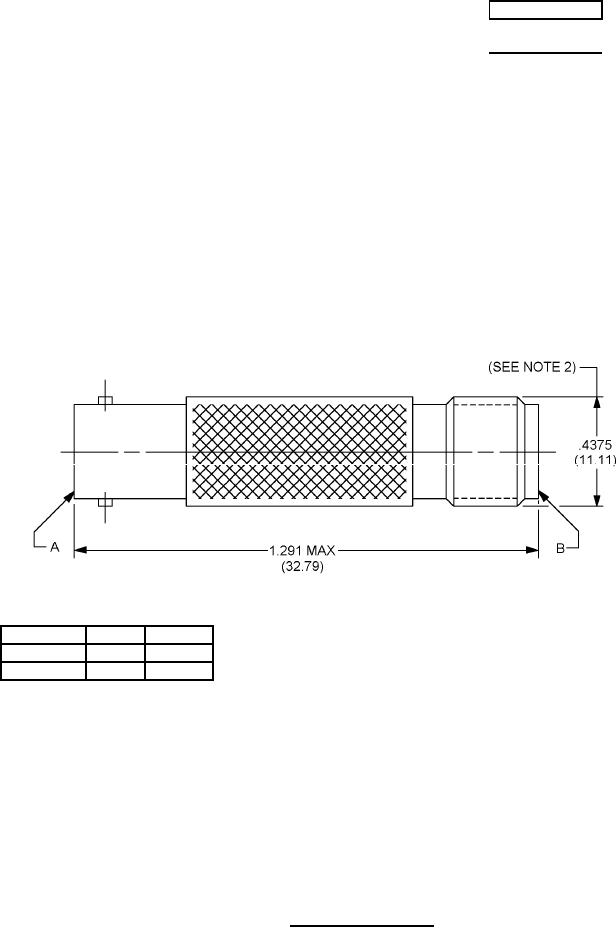

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
