INCH-POUND
MIL-PRF-55339/4B
25 August 2004
SUPERSEDING
MIL-PRF-55339/4A
11 January 1977
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY, IN-LINE, JAMNUT MOUNTED,
(WITHIN SERIES N JACK TO SERIES N JACK, (HERMETIC AND NON-HERMETIC)), CLASS 2
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-55339.
Inches
mm
Inches
mm
.022
.53
.625
15.88
.055
1.40
.630
16.00
.120
3.05
.645
16.38
Reference
Series
Contact
.130
3.30
.745
18.92
A
N
Socket
.285
7.22
.755
19.18
.526
13.36
.858
21.79
.531
13.49
.868
22.05
.532
13.51
.900
22.86
.543
13.79
1.562
39.67
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All undimensioned pictorial representations are for reference purposes only.
4. Panel thickness .055 minimum, .285 maximum.
5. Interface dimensions shall be in accordance with MIL-STD-348, series N socket contact.

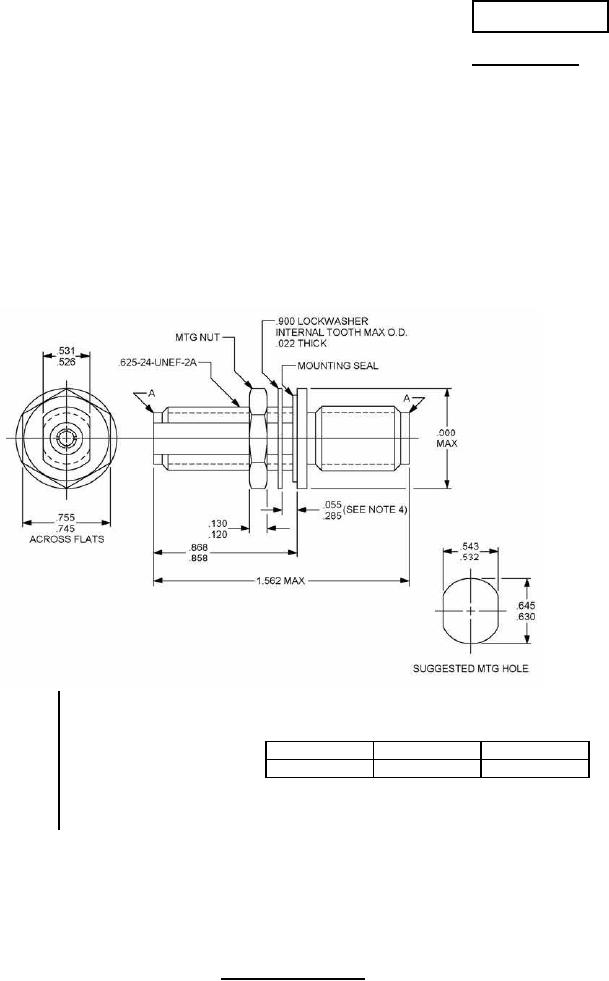

FIGURE 1. General configuration.
