INCH-POUND
MIL-PRF-55339/9A
25 August 2004
SUPERSEDING
MIL-PRF-55339/9
6 May 1975
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY,
(WITHIN SERIES C), CLASS 2, STRAIGHT PLUG
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-55339.
Reference
Series
Contact
A and B
C
Pin
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All undimensioned pictorial representations are for reference purposes only.
4. Interface dimensions to be in accordance with MIL-STD-348, series C pin contact.

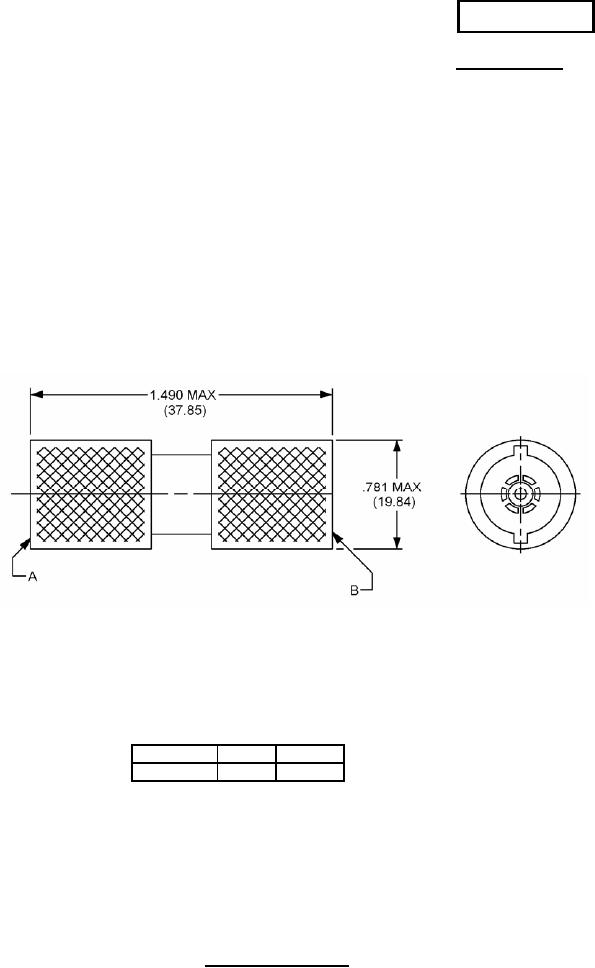

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
