MS17345F
|
Shell size |
A Thread (plated) class 2A |
B + .016 - .000 |
D dia + .005 - .010 |
K + .021 - .020 |
12 |
0.8750-0.1P-0.2L-DS |
.688 |
.567 |
.938 |
14 |
1.0000-0.1P-0.2L-DS |
.692 |
||
16 |
1.1250-0.1P-0.2L-DS |
.817 |
||
18 |
1.2500-0.1P-0.2L-DS |
.703 |
.942 |
.953 |
20 |
1.3750-0.1P-0.2L-DS |
1.068 |
||
22 |
1.5000-0.1P-0.2L-DS |
1.192 |
||
24 |
1.7500-0.1P-0.2L-DS |
.766 |
1.016 |
.977 |
28 |
2.0000-0.1P-0.2L-DS |
1.536 |
1.016 |
|
32 |
2.2500-0.1P-0.2L-DS |
.703 |
1.786 |
1.078 |
36 |
2.5000-0.1P-0.2L-DS |
2.005 |
||
40 |
2.7500-0.1P-0.2L-DS |
2.255 |
||
44 |
3.0000-0.1P-0.2L-DS |
2.545 |

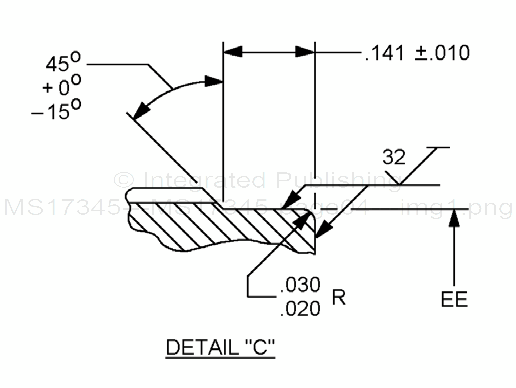

FIGURE 1. Dimensions and configuration - Continued.
4
