MS18194E
Long turnable jackscrew designator |
Gender |
Connector size (number of contacts) |
A Thread class 2 |
8 max |
C dia max |
D dia max |
E dia ±.002 (0.05 mm) |
MS18194-5 |
Male |
34, 42, 50, 66, 75 |
6-32-UNC-2A .138-32 UNC |
2.438 (61.93) |
.192 (4.88) |
.192 (4.88) |
.111 (2.82) |
MS18194-6 |
Female |
34, 42, 50, 66, 75 |
6-32-UNC-28 .138-32 UNC |
2.438 (61.93) |
.192 (4.88) |
.192 (4.88) |
.111 (2.82) |
MS18194-7 |
Male |
104 |
8-32-UNC-2A .164-32 UNC |
3.282 (83.36) |
.225 (5.72) |
.225 (5.72) |
.140 (3.56) |
MS18194-8 |
Female |
104 |
8-32-UNC-28 .164-32 UNC |
3.282 (83.36) |
.225 (5.72) |
.225 (5.72) |
.140 (3.56) |
For use with MS18192-10 through -13, MS18193-3 and -4, and MS24133-9 through -12 shields or
MS18203-11 through -16 and MS18204-11 through -16 shells.
When MS18203-11 through -16 or MS18204-11 through -16 shells are required to be used with a shield, use MS18192-1 through -9 or MS18193-1 or -2 shield.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.016 inch (0.41 mm).
4. Material corrosion resistance steel in accordance with ASTM A276, ASTM A473,
ASTM A581/A581M, ASTM A582/A582M, SAE AMS5636, SAE AMS5639, SAE AMS5648, classes
302, 303, 303Se, 304 or 316 except for aluminum alloy knob and tubular, spacer.
5. Finish passivated in accordance with ASTM A967 or SAE AMS2700 except for anodized knob.

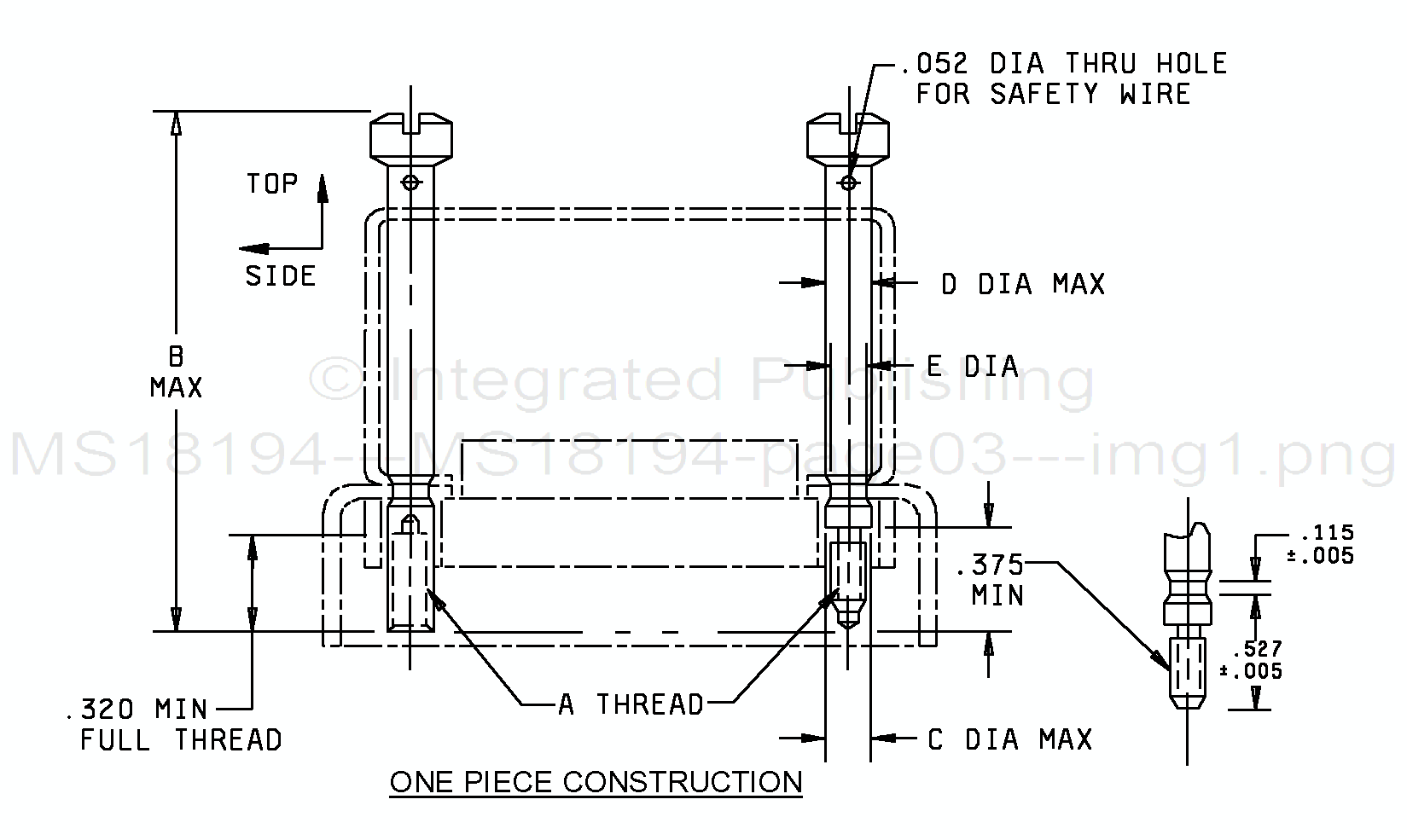

FIGURE 2. Long turnable jackscrew one piece construction.
